Hydraulic hose CPB Mine

for hydrocarbonsfor watersteel

Product Overview

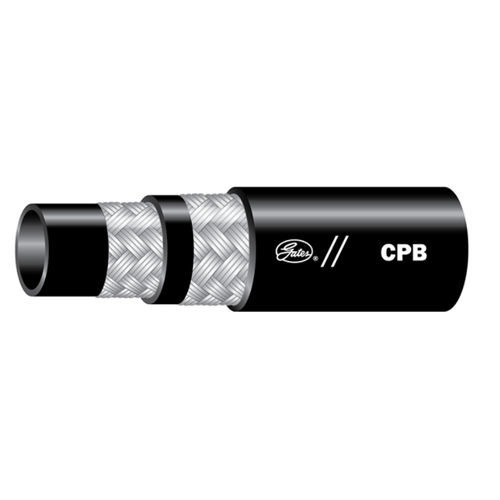

Recommended for high-pressure hydraulic lines in longwall mining equipment and roof-support systems. Suitable for petroleum-based or water emulsion fluids. Two-wire braid construction with static and dynamic pressure ratings marked on the hose.

Key Features

• Intended for high-pressure hydraulic lines in longwall mining and roof-support systems using petroleum-based or water-emulsion fluids.
• Couplings: MegaCrimp™ (-4, -6, -8, -12, -16, -20) and GSP (-24, -32).
• Dynamic working pressure per BCS174 accounts for frequent pressure surges in service.
• MegaTuff™ cover provides significantly increased abrasion resistance and improved ozone/weathering resistance (ISO 6945 abrasion testing).
• Qualification testing: 100,000 impulse cycles at 133% of the dynamic working pressure.
• Static working pressure applies to circuits with minimal pressure surging and allows higher allowable ratings.
• BCS174 observes that internal hydraulic circuits in roof support systems operate near steady-state with little dynamic loading; hoses can accept higher static ratings.
• Per EN 853 2SN: allowable static working pressure is approximately a 1:2.5 ratio to burst pressure.
• Burst pressures referenced to EN specification (note: Gates minimum burst pressures are higher).
• Specified as exceeding SAE and ISO requirements in relevant performance aspects.

Variants / All Parts (table)
Part # | Product # | Description | Inside Diameter (in) | Inside Diameter (mm) | Outside Diameter (in) | Outside Diameter (mm)
70764/4CPB XREEL | 46572548 | 70764 4CPBXREEL | 0.25 | 6.4 | 0.59 | 15
70765/6CPB XREEL | 46572549 | 70765 6CPBXREEL | 0.375 | 9.5 | 0.74 | 18.8
70766/8CPB XREEL | 46572550 | 70766 8CPBXREEL | 0.5 | 12.7 | 0.87 | 22.1
70767/12CPB XREEL | 46572551 | 70767 12CPBXREEL | 0.75 | 19.1 | 1.15 | 29.2
70768/16CPBP XREEL | 46572552 | 70768 16CPBXREEL | 1.0 | 25.4 | 1.48 | 37.6
20CPB XCTN | 46572553 | 20CPBXCTN | 1.25 | 31.8 | 1.87 | 47.5
24CPB X50FT | 46574525 | 24CPBX50FT | 1.5 | 38.1 | 2.11 | 53.6
32CPB X50FT | 46574526 | 32CPB X 50FT | 2.0 | 50.8 | 2.62 | 66.5

Technical specifications

• Construction: Two-wire braid hydraulic hose (EN 853 2SN configuration).
• Applications: Longwall mining equipment, roof-support systems, high-pressure hydraulic lines.
• Fluids: Petroleum-based fluids or water emulsion fluids.
• Coupling compatibility: MegaCrimp™ (-4, -6, -8, -12, -16, -20) and GSP (-24, -32).
• Standards and testing: EN 853 2SN for static working pressure; ISO 6945 for abrasion testing; qualification includes 100,000 impulse cycles at 133% of dynamic working pressure.
• Performance notes: MegaTuff™ cover increases abrasion resistance and improves ozone/weathering resistance.
• Pressure behavior: Dynamic working pressure (BCS174) for frequent surges; static working pressure for near steady-state circuits.
• Comparative: Burst pressures referenced to EN specification; specified to exceed relevant SAE and ISO aspects.
