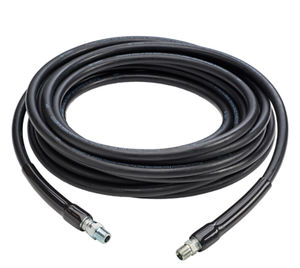

Foodstuff hose Clean Master™ PW4000

for hot waterfor cold waterhigh-pressure

Overview
Recommended application: hot and cold water high-pressure cleaning equipment for commercial and industrial cleaning, food processing, sanitation and car wash applications requiring heavy-duty service. Specially compounded cover resists harsh environments. Meets 300°F (150°C) intermittent per EN1829–2. Increased operating temperatures reduce hose assembly service life.

Key features

• Designed for use with Gates MegaCrimp™ and Pro™ Series couplings. See the Hose Coupling Section of the Gates Industrial Hose, Coupling & Equipment Catalog for reference.
• Abrasion and ozone resistant cover.
• High oil resistance.
• Use bend restrictors to extend service life.

Available parts (excerpt - table)
Part # | Product # | Description | Maximum Working Pressure (psi) | Maximum Working Pressure (bar) | Inside Diameter (in) | Inside Diameter (mm) | Outside Diameter (in) | Outside Diameter (mm)
1/2XBALE CLEAN MASTER PW4000 BLACK/8CL1104 | 46579536 | 8CL1104 1/2XBALE CLEAN MASTER PW4000 BLACK | | | 0.50 | 12.7 | 0.80 | 12.7
1/2XBALE CLEAN MASTER PW4000 BLUE/8CL1105 | 46579538 | 8CL1105 1/2XBALE CLEAN MASTER PW4000 BLUE | | | 0.50 | 12.7 | 0.80 | 12.7
1/2XBALE CLEAN MASTER PW4000 GRAY/1/2XBALE CLEAN MASTER PW4000 GRAY | 46579541 | 8CL1106 1/2XBALE CLEAN MASTER PW4000 GRAY | | | 0.50 | 12.7 | 0.80 | 12.7
1/2XRL 300FT CLEAN MASTER PW4000 GRAY/1/2XRL 300FT CLEAN MASTER PW4000 GRAY | 46579464 | 8CL1101 1/2XRL 300FT CLEAN MASTER PW4000 GRAY | | | 0.50 | 12.7 | 0.80 | 12.7
1/2XRL 300FT CLEAN MASTER PW4000 YELLOW/8CL1103 | 46579466 | 8CL1103 1/2XRL 300FT CLEAN MASTER PW4000 YELLOW | | | 0.50 | 12.7 | 0.80 | 12.7
1/4X100FT CLEAN MASTER PW4000 BLUE/1/4X100FT CLEAN MASTER PW4000 BLUE | 46579586 | 4CL1102 1/4X100FT CLEAN MASTER PW4000 BLUE | | | 0.25 | 6.4 | 0.53 | 6.4
1/4XLGRL 1000FT CLEAN MASTER PW4000 BLACK/4CL1100 | 46579378 | 4CL1100 1/4XLGRL 1000FT CLEAN MASTER PW4000 BLACK | | | 0.25 | 6.4 | 0.53 | 6.4
1/4XLGRLBLPC3500/1/4XLGRLBLPC3500 | 46572562 | 1/4XRL 1000FT CLEAN MASTER P WASH 1 WB 3500 BLUE | 3.5 | 241.3 | 0.25 | 6.4 | 0.53 | 13.5
3/8X100FT CLEAN MASTER PW4000 GRAY/6CL1109 | 46560225 | 6CL1109 3/8X100FT CLEAN MASTER PW4000 GRAY | | | 0.38 | 9.5 | 0.67 | 9.5
3/8X50FT CLEAN MASTER PW4000 GRAY/6CL1108 | 46560224 | 6CL1108 3/8X50FT CLEAN MASTER PW4000 GRAY | | | 0.38 | 9.5 | 0.67 | 9.5

Technical specifications

• Recommended application: hot and cold water high-pressure cleaning equipment for commercial and industrial cleaning, food processing, sanitation and car wash applications.
• Cover: specially compounded to handle harsh environments; abrasion and ozone resistant; high oil resistance.
• Temperature rating: meets 300°F (150°C) intermittent per EN1829–2. Note: increased operating temperatures reduce hose assembly service life.
• Coupling compatibility: designed for use with Gates MegaCrimp™ and Pro™ Series couplings.
• Service-life extension: use bend restrictors to extend service life.
• Common inside diameters: 0.25 in (6.4 mm), 0.38 in (9.5 mm), 0.50 in (12.7 mm).
• Common outside diameters (examples): 0.53 in (13.5 mm for one SKU), 0.67 in (9.5 mm), 0.80 in (12.7 mm).
• Available formats: reels, bales and cut lengths in multiple colors (Black, Blue, Gray, Yellow) and pack sizes (100 ft, 300 ft, 1000 ft, etc.).
