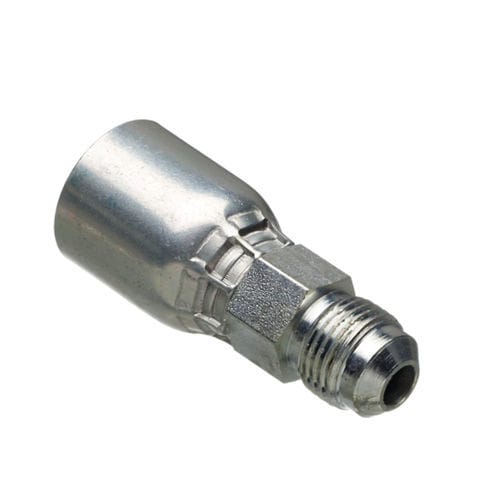

Hydraulic oil fitting GLX

compressionsteel

Product overview

• GLX couplings are crimped steel hose couplings designed for use on Gates textile-reinforced hoses and equivalent assemblies.
• Suitable for working pressures up to 1000 psi.
• Available in multiple terminations, thread sizes and inside diameters.

Applications

• Hydraulic and industrial fluid transfer systems
• OEM hose assemblies and replacement fittings

Key features

• Crimped (fixed) coupling design for secure hose termination
• Steel construction with a wide range of terminations
• TuffCoat™ plating offering improved corrosion resistance (claimed 347% vs SAE standard)
• Compatibility with textile‑reinforced hoses and multiple thread sizes
• Extensive product range (107 listed variants)

Parts (excerpt)
Part # | Product # | Description | Inside Diameter (in) | Inside Diameter (mm) | Thread Size
G44170-1010/10GLX-10FJX | 710700305 | G44170-1010 10GLX-10FJX | 0.626 | 15.9 | 7/8-14
G44170-1010X/10GLX-10FJX XBULK | 71070030 | G44170-1010X 10GLX-10FJX XBULK | 0.626 | 15.9 | 7/8-14
G44100-1008/10GLX-8MP | 710700195 | G44100-1008 10GLX-8MP | 0.626 | 15.9 | 1/2-14
G44100-1008X/10GLX-8MPXBULK | 71070019 | G44100-1008X 10GLX-8MP XBULK | 0.626 | 15.9 | 1/2-14
G44170-1212/12GLX-12FJX | 710700315 | G44170-1212 12GLX-12FJX | 0.752 | 19.1 | 1 1/16-12
G44170-1212X/12GLX-12FJX XBULK | 71070031 | G44170-1212X 12GLX-12FJX XBULK | 0.752 | 19.1 | 1 1/16-12
G44110-1212/12GLX-12FP | 710700465 | G44110-1212 12GLX-12FP | 0.752 | 19.1 | 3/4-14
G44111-1212/12GLX-12FPX | 710700395 | G44111-1212 12GLX-12FPX | 0.752 | 19.1 | 3/4-14
G44111-1212X/12GLX-12FPX XBULK | 71070039 | G44111-1212X 12GLX-12FPX XBULK | 0.752 | 19.1 | 3/4-14
G44110-1212X/12GLX-12FPXBULK | 71070046 | G44110-1212X 12GLX-12FP XBULK | 0.752 | 19.1 | 3/4-14

Technical specifications

• Product family: GLX Couplings
• Designed for use on Gates textile-reinforced hoses
• Maximum working pressure: up to 1000 psi
• Materials: steel couplings (various terminations available)
• Plating: TuffCoat™ plating — claimed 347% better corrosion resistance vs SAE Standard
• Wide range of thread sizes and inside diameters available (examples provided in parts table)

Ordering & references

• Number of listed variants on page: 107 items
• Base product identifier on page: 7107-000000-000002
