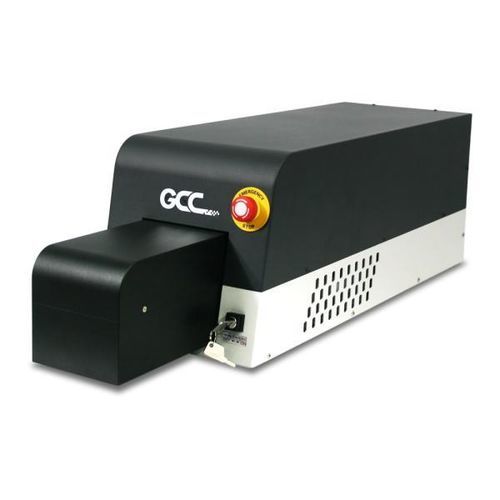

Laser marking device StellarMark 3DS

fiber laserindustrialdesktop

Product Overview: StellarMark 3DS Laser Marker series is integrated with a 3D scan head, which allows users to process round/cylinder objects with ease. The scan head provides a 300x300mm working area and the focus range is 100mm. The system is an all-in-one design (only for 20W/30W), allowing easier and fast integration into the production line to meet every customer's needs. - 3D Scan Head: A 3-axis scan head is included for the best marking solution for round/cylinder objects. - All-in-one Design: The machine has an advanced All-IN-ONE design featuring size and easy integration into the production line. - 200 x 200 mm & 300 x 300 mm Working Area: Standard 200 x 200 mm or 300 x 300 mm working area that helps you process large objects and allow you for more applications. - Emergency Stop: A red button located on the front of the machine allows operators to stop the laser and AC power immediately for greater safety. - Key Switch: The safety feature enables the manager/owner to keep the machine locked in a specific mode to avoid tampering. - 2-Point Focus Tool: Two red beams assist the user in accurately setting the focus distance. Optional Items: - Rotary Attachment - Marker: The rotary attachment unit allows for precise 360° marking on round, cylindrical, or torus-shaped objects. The unit flexibly accommodates objects with external diameters up to 81 mm, internal diameters up to 70 mm, and weight up to 5kg. External marking on torus-shaped objects, such as a ring, is simple and precise with the included ring stick. - MultiFOCUS: MultiFOCUS function allows user to set multiple focus distances setting at once according to the object height. Z-axis will automatically adjust correctly so users do not need to set focal distance multiple times. - LFC D Desktop Workstation: Compact and stylish desktop workstation. Equipped with many functions to keep operators safe. - EZ Stand: EZ Stand is a simple laser marker holder that allows users to quickly set up a marking environment suitable for use with StellarMark C, I, and 3DS series. Technical Specifications: - Laser Source: Wavelength: 1,064 nm, Type: Fiber Laser, Output Power: 30W/60W, Cooling: Air-cooled, no water chiller required - Working Area: 200 x 200 mm or 300 x 300 mm - Spot Size: 0.041 mm (200x200 mm), 0.067 mm (300x300 mm) - Max. Marking Speed: 6,000 mm/s - Focal Distance: 285 mm - Focus range in z direction: 100 mm - Electrical Requirements: Power Supply: AC Auto Switching 115V / 230V, 50-60 Hz/ single phase, Power Consumption: 740W - Dimensions: Laser Marker: L 760 x W 210 x H 220 mm, Laser Housing Unit: L 383 x W 318 x H 120 mm - Weight: Laser Marker: 16.0 Kg, Laser Housing Unit: 12.7 Kg - Operating system: Microsoft Windows 10/11 (32/64 Bit) (Desktop or Laptop PCs) - Environment: Temperature: 15℃ ~ 35℃, Humidity: 10 ~ 80% Non condensing - Safety: Class 4 (EN60825-1 Class 1 available with safety shield LFC D), 2006/42/EC Machinery Directive, 2014/35/EU Low Voltage Directive, 2014/30/EU Electromagnetic Compatibility Directive - Repeatability: 0.04 mm
