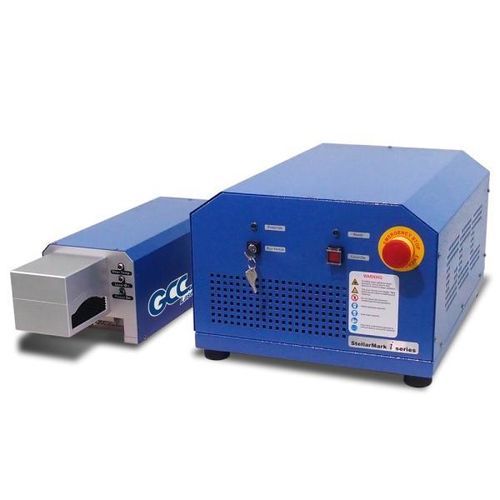

CO2 laser marking device StellarMark I-series

industrial

StellarMark I-Series Laser Marker is a comprehensive solution that satisfies customers with diverse requirements. It is easy to install, easy to operate, designed with simple maintenance and safety considerations while providing superior output quality.Superior Text-editing Function: Automatic Serial MarkingBarcode MarkingWobble MarkingJump Cross MarkingFont VariationLogo and Image MarkingArc MarkingPyramid Focus Tool: Standard feature for StellarMark IFII series. Helps quickly and precisely find the correct focus distance.Mark On Fly (Optional): Software function for marking moving objects on a conveyor.G-Mark Library (Optional): Programmable software for customizing functions by VB scripts. Allows real-time command reception, position offset, angle rotation, and dynamic text content changes. Optimizes and simplifies marking workflow on production lines.Auto Power Compensation: Close loop design ensures consistent output power over long periods.Preview Mode: Variable-speed, red dot pointer "preview" mode for accurate and easy marking positioning.Cost-Saving Solution: State-of-the-art end pumped and fiber design, offering less downtime and lower running costs than conventional lasers.Emergency Stop: Entire machine can be shut down by pressing the Emergency Stop button from the controller in emergencies.Key-Switch: Safety feature to lock the laser and avoid unauthorized use.CE Certification: Complies with essential safety requirements set out in the European Directives.RoHS Compliance: All GCC products are RoHS-compliant and lead-free, providing environmentally friendly products.Error Indications: Error messages appear when the laser marker works incorrectly, allowing operators to solve problems immediately.Secure Password Protection: Three-tier password security system restricts unauthorized access to the production line.Optional Items:Safety door: Can be fastened to a rigid mounting structure to ensure the marking system and adjustable Z-axis table are parallel for quality jobs.EZ Stand (i-series): Simple laser marker holder for quick setup, suitable for 12W and 30W models. Adjustment dial for easy focal distance changes.Adjustable z-axis table: Adjusts the marking surface to ensure it is parallel to the focusing lens mount.Rotary Attachment - Marker: Allows precise 360° marking on round, cylindrical, or torus-shaped objects. Accommodates objects up to 81 mm external diameter, 70 mm internal diameter, and 5kg weight. Includes ring stick for external marking on torus-shaped objects.Workstation: Not available on StellarMark C-100 model.Technical Specifications:Laser Source: Yb-doped, MOPA, 1064 nm wavelengthOutput Power: 20W, 30W, 50W, 60WBeam Mode: TEM00Beam Quality (M²): <1.5 (20/30/50W), <1.8 (60W)Frequency: 1-600 kHz (20/30/50W), 1-400 kHz (60W)Waveform: SingleCooling: Air-cooledMax. Linear Marking Speed: 3,000 mm/sMax. Marking Speed: 10,000 mm/sPower Supply: 100~240V, 50/60 Hz Max 15 AmpPower Consumption: Max. 1650WDimensions (Laser Head): L 497 x W 168 x H 152 mmDimensions (Control Unit): L 470 x W 360 x H 241 mmLaser Marker Weight: 9 kgControl Unit Weight: 25 kgOperating System: Microsoft Windows 2000 / XP / Vista(32/64 Bit) / 7(32/64 Bit) / 8(32/64 Bit)Environment: Temperature 15℃ ~ 35℃, Humidity 10 ~ 80% Non condensingSafety: Class 4 (EN60825-1 Class 1 available with safety shield and LFC), 2006/42/EC Machinery Directive, 2014/35/EU Low Voltage Directive, 2014/30/EU Electromagnetic Compatibility DirectiveScan Lens Options: 70x70 mm (27 μm spot, 142 ± 1 mm working distance, 0.03 mm repeatability), 110x110 mm (44 μm spot, 220 ± 2 mm working distance, 0.03 mm repeatability), 180x180 mm (71 μm spot, 350 ± 2 mm working distance, 0.04 mm repeatability), 300x300 mm (114 μm spot, 553 ± 3 mm working distance, 0.06 mm repeatability)
