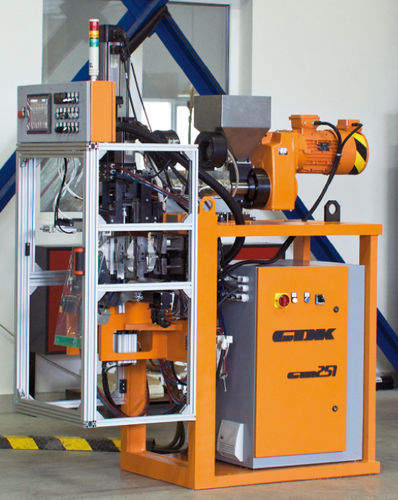

Extrusion blow molding machine GM 250 seriestwin-stationsingle-stationautomatic
Add to favorites
Compare this product
Characteristics
- Type
- extrusion
- Other characteristics
- twin-station, single-station, automatic, electric, pneumatic
- Hollow part volume
Max.: 0.4 l
(0.1 gal)Min.: 0 l
(0 gal)- Clamping force
12 kN
Description
Dimensions (Width/Length/Height) -
900 / 1 700 / 2 100 mm - 1 400 / 2 200 / 2 100 mm -
Screw diameter - 25 mm - 32 mm
Weight - 800 kg - 1 500 kg -
Extruder drive output - 4 kW - 7,5 kW
Extruder output HD-PE - 7 kg/h - 14 kg/h
Shuttle stroke 150 mm
Standard center distance
2 Cavities
50 mm
Mould closing - pneumatic - pneumatic
Carriage movement - electric - pneumatic
Blow pin movement - electric - pneumatic
Parison cutter - pneumatic - pneumatic
Deflashing - pneumatic - pneumatic
Extruder bobbing - pneumatic - pneumatic
Wall thickness control - electric - electric
