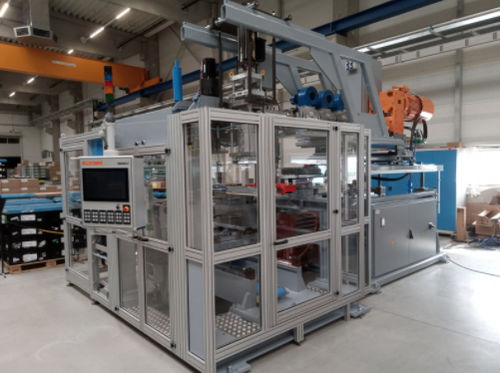

Extrusion blow molding machine GM 20K series

multilayer

Dimensions (Width/Length/Height) - 3 200 / 5 400 / 3 350 mm - 4 350 / 6 000 / 3 350 mm - Screw diameter - 80 mm - 100 mm Weight - 16 300 kg - 19 200 kg - Extruder drive output - 55 kW - 115 kW Extruder output HD-PE - 140 kg/h - 270 kg/h Shuttle stroke 670 mm 750 mm Standard center distance 2 Cavities - 3 Cavities - 4 Cavities - 5 Cavities - 6 Cavities - 7 Cavities - 8 Cavities 300 mm - 200 mm - 150 mm - 120 mm - 100 mm - _ - _ 350 mm - 230 mm - 170 mm - 135 mm - 115 mm - 95 mm - 85 mm Mould closing - electric Carriage movement - electric Blow pin movement - electric Parison cutter - pneumatic Deflashing - pneumatic Extruder bobbing - electric Wall thickness control - electric
