gas turbine / combined-cycle / multi-stage / for power generation
6F.03

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
gas turbine / combined-cycle / multi-stage / for power generation gas turbine / combined-cycle / multi-stage / for power generation - 6F.03
{{requestButtons}}

Characteristics

  • Type:

    gas

  • Other characteristics:

    combined-cycle, multi-stage

  • Applications:

    for power generation

  • Rated power kW:

    88,000 kW, 135,000 kW, 272,000 kW (119,646.66 hp)

Description

Whether you need to generate power on-site or produce steam for petrochemical or district heating operations, the 6F.03 heavy-duty combined-cycle gas turbine delivers high levels of efficiency, availability, flexibility, and reliability.

Durable, Compact Design for Diverse Applications
The 6F.03 was built for harsh and remote environments and a wide range of applications, and over 140 units are currently in use worldwide.

Fuel Flexibility Gives You More Options
Capable of operating on a wide range of fuels, the 6F.03 can achieve turndown to 52 percent load using Dry Low NOx (DLN) 2.6 combustion.

Engineered to Address Your Challenges
Its advanced compressor design is aerodynamically scaled from our 7F.04 gas turbine, providing efficiency, reliability, and availability.

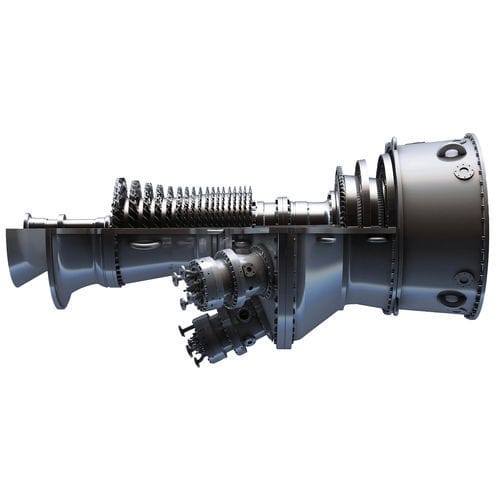

6F.03 Gas Turbine (50/60 Hz)
The 6F.03’s enhanced flexibility makes it an excellent choice for a variety of applications, as well as a variety of environments.

Applications include industrial parks, pulp and paper production, and even aluminum manufacturing
Capable of operating on a wide range of natural gas, distillate, and synthetic fuels
Flexible layout, including lateral or axial air inlet and indoor or outdoor acoustic enclosures, overcomes space constraints
18-stage compressor with high-strength, corrosion-resistant materials and cold-end drive
Robust DLN 2.6 combustion system enables lower emissions—less than 15 ppm NOx or 9 ppm CO—and 32,000-hour combustion inspection intervals
Three-stage turbine featuring air-cooled design with integral tip shrouds to reduce bucket fatigue and improve heat rate
