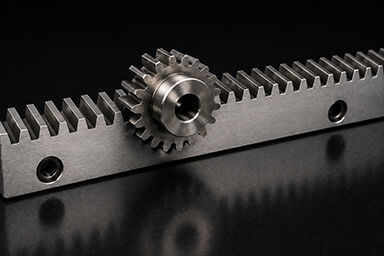

Straight-toothed rack and pinion

steelPOMaluminum

Product overview
Rack and pinion systems convert rotational motion into linear motion, or vice versa. Components are precision-ground and machined from Delrin (acetal), steel, aluminium alloys or cast materials to ensure accurate tooth engagement, smooth travel and repeatable positioning. Available in standard and custom pitch configurations for industrial linear-drive applications.

Pinion (Gear)

• Precision-machined circular gear for accurate tooth engagement.
• Converts rotary input to controlled linear movement.
• Engineered for efficient power transmission and low backlash.
• Supplied in Delrin, steel, aluminium or cast variants.

Rack (Linear Gear)

• Straight gear with precision-cut teeth for linear guidance.
• Ensures accurate positioning and high repeatability.
• Suitable for long travel and continuous stroke applications.
• Available in lengths and tooth profiles to customer specification.

Features

• Precision ground and machined tooth profiles.
• Material options: Delrin (acetal), steel, aluminium alloys, cast materials.
• Low-noise, smooth operation and reduced backlash options.
• Standard and custom pitch configurations.
• Custom manufacturing to meet dimensional and material requirements.

Applications

• CNC machines and machine tools
• Industrial automation and motion control
• Material handling and transfer systems
• Packaging machinery
• Automotive steering and actuation
• Lifting, positioning and stage systems
• Robotics and bespoke linear drives

Benefits

• Accurate, repeatable linear motion from rotary input.
• Long service life with appropriate material selection and maintenance.
• High transmission efficiency and reliable performance.
• Adaptable to heavy-duty and precision applications.
• Manufacture to customer drawings and tolerances.

Technical specifications

• Materials: Delrin (acetal), steel, aluminium alloys, cast materials.
• Construction: Precision ground and machined tooth profiles.
• Function: Converts rotary motion to linear motion and vice versa.
• Operation: Smooth, low-noise, efficient power transmission; low-backlash options available.
• Configurations: Standard and custom pitch; lengths and mounting options per specification.
• Performance: High dimensional accuracy, excellent wear resistance, high repeatability.
