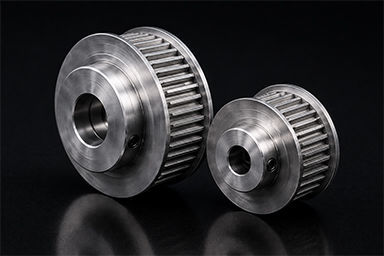

Toothed pulley

synchronoustimingtiming belt

Product Overview

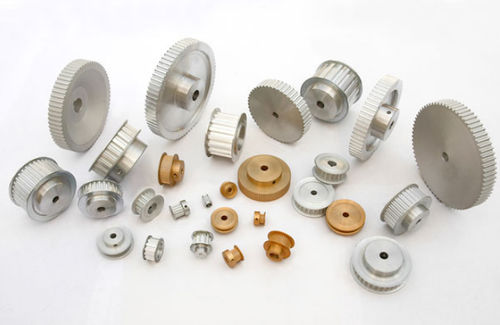

The Gear Edges manufactures timing pulleys designed for precise power transmission and synchronized motion. A timing pulley is a toothed wheel that engages a matching timing belt to transmit rotary motion without slipping, enabling accurate positioning and coordinated movement.

Features

• Precision-machined tooth profiles for consistent belt engagement.
• Positive drive with no slip between belt and pulley.
• High transmission efficiency and low maintenance.
• Dimensional accuracy suitable for precision assemblies.
• Material options: aluminium, steel, Delrin and engineering plastics.
• Available in standard and custom sizes, flanges and bore finishes.

Applications

• CNC machines
• 3D printers
• Conveyor systems
• Robotics and industrial automation
• Packaging machinery
• Automotive timing systems
• Material handling equipment

Advantages

• Eliminates slip for accurate speed and position control.
• Smooth, quiet operation in precision mechanisms.
• Long service life with minimal upkeep.
• Often requires no lubrication.
• Suitable for both light-duty and high-torque applications depending on type.

Available Types

• GT2 – Ideal for precision equipment such as 3D printers and light-duty automation.
• HTD (High Torque Drive) – Designed for high-torque industrial applications.
• T-Series (T2.5, T5, T10) – Trapezoidal tooth profile suitable for general power transmission.

Technical specifications

• Belt pitch (examples: 2 mm, 3 mm, 5 mm, etc.).
• Number of teeth.
• Bore diameter (shaft size).
• Pulley width.
• Material and surface finish options.
• Flange configuration: single, double, or flangeless.
