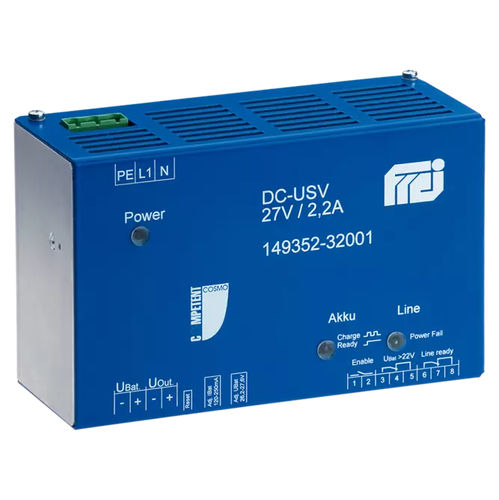

DC UPS 149352-32001

DIN railcompactIEC

DC UPS COMPETENT-COSMO 27 V / 2.2 A Includes power supply, battery charger and DC UPS module • Wide range input 95 – 265 VAC / 45 – 63 Hz • Adjustable output voltage • Adjustable charging rate • Load depending low voltage disconnection • Integrated battery test • Safety according VDE 0805 / EN 60950 / IEC 950 • Emission according to EN 55022 class B • CE-Standard according to EN 61000-4-2, 3, 4, 5, EN 610003-2A • Compact housing, DIN rail mounted • Monitoring output signals • Ta 45°C (ideal for battery 25° C) • Screw clamps type terminal • Weight ca. 0.7 kg
