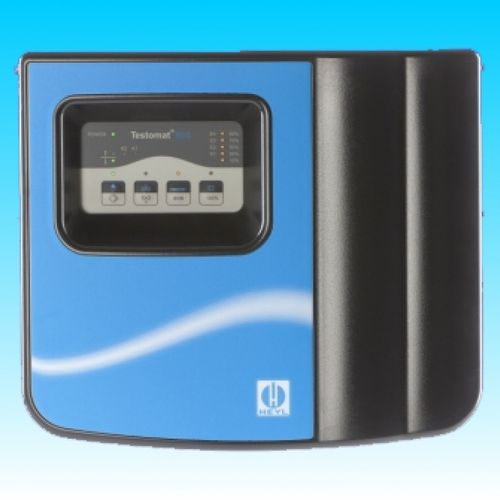

Water analyzer Testomat® 808

monitoringwater hardnesstemperature

The Testomat® 808 is a limit value monitoring device for water hardness and the further development of the Testomat® F-BOB. Application reverse osmosis plants soft water for commercial purposes pure water production plants galvanization Measuring range Water hardness 0.02 – 3 °dH (0.4….54 ppm CaCO3) Technical Data Power supply: Dependig on product configuration: 24V / 115V / 230V, 50 – 60 Hz Instrument protection: 230 – 240 V: T0,1 A; 115 V: T0,2 A; 24 V: T0,8 A Mains protection for consumers: max. 4 A (n , l) Power consumption: max. 16 VA, without external load Protection class: I Degree of protection: IP 54 Conformity: EN 61000-6-2, EN 61000-6-4, EN 61010-1 Ambient temperature: 10 – 40 °C; 50 - 104°F Current interface: Output of defined values (5, 8, 11, 14, 17, 20 mA) for displaying status and error mes-sages, max. load 500 Ohms Contact load relay: 230V / 4A AC ohm resistive load Dimensions: B x H x T = 364 x 314 x 138 mm Weight: 4350 g
