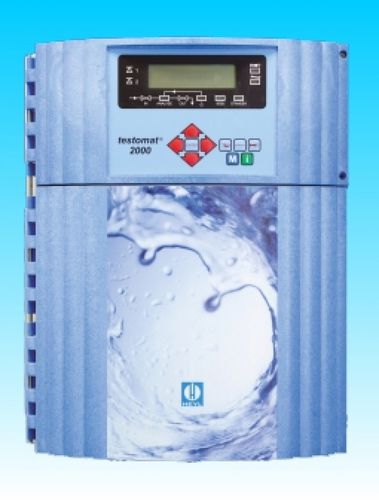

Water analyzer Testomat 2000® V

Alkalinityfor integrationin-line

Testomat 2000® V is a control system at the basis of the Testomat 2000® suitable for the water hardness and carbonate hardness /alkalinity of blending water. Blending occurs in connection with a proportional 3/2-way motor valve with 0/4-20mA interface. Application regulation of water blending systems (cooling circuits, process water) Measuring range 1.0-25.0 °dH Water hardness 1.0-20.0 °dH Carbonate hardness (depending on the choice of the indicator) Technical Data Power supply: 230–240 VAC, 115 VAC, 24 VAC all 50–60Hz Power consumption: max. 30 VA Protection class: I Degree of protection: IP 65 Ambient temperature: 10–45 °C, 50 - 104°F Option: booster pump see accessories Dimensions (B x H x T): 380 x 480 x 280 mm Weight: approx. 9.5 kg Menu languages: German, English, French, Italian (others upon request) Mains water supply Operating pressure: 1 to 8 bar (15 to 116 psi) or 0,3 to 1 bar (5 to 15 psi), after removing of the valve body out of the regulator/filter housing Water inlet: Opaque hose with 6 mm external diameter/4 mm internal diameter Water outlet: Hose with 6 mm external diameter/4 mm internal diameter Water temperature: 10 to 40 °C; 50 to 104°F
