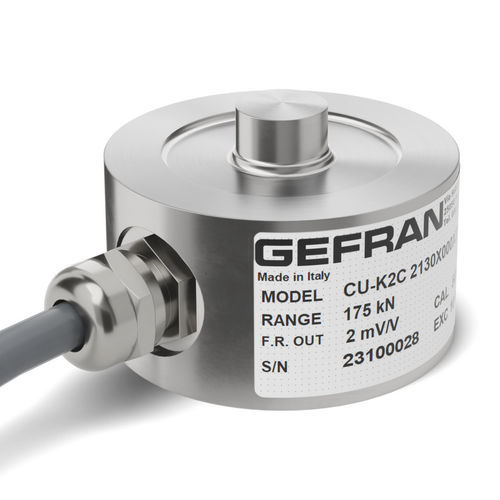

Compression load cell CU series
button typestrain gaugecompact

compression load cell
compression load cell
compression load cell
Add to favorites
Compare this product


button type
strain gauge
Other characteristics
compact, stainless steel, IP67
Rated load

Min.: 50 kg (110.23 lb)

Max.: 1,000 kg (2,204.62 lb)


Overview The CU range of load cells are designed for the measurement of static or dynamic loads in compression. All the transducers are calibrated as load cells in units of mass (Kg). The CU series is supplied for nominal loads from 50 Kg to 1 T. This model has an IP67 protection degree so it can be used in aggressive atmospheres often found in the chemical industries. The transducer body is machined from a single piece of stainless steel with no welding. This means that it is highly resistant to mechanical shock and vibration. The compact size means that these cells can be placed in positions that are difficult to acess and where little space is available. Description Range of measurement: from 50 to 1,000 Kg Accuracy class: 0.2% All stainless steel construction Corrosion resistant Grade of protection: IP67 (DIN 40050) Compact size
