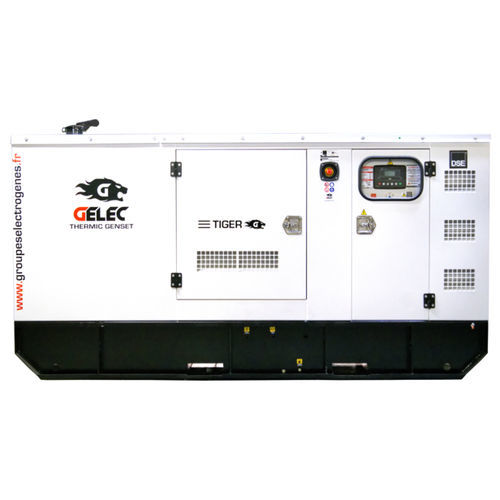

three-phase generator set / diesel / transportable / 50 Hz
TIGER-200YC

{{requestButtons}}

Characteristics

  • Phase:

    three-phase

  • Motor type:

    diesel

  • Portability:

    transportable

  • Frequency:

    50 Hz

  • Options and accessories:

    with cover

  • Applications:

    emergency, industrial, for construction sites, for military applications, for telecom applications, for railway applications, for mining

  • Rotational speed:

    1,500 rpm (9,425 rad.min-1)

  • Power in kVA:

    144 kW, 180 kW (195.79 hp)

Description

PRODUCT INFORMATION
GENERAL DATAS :

PRP : Prime Rated Power : 180 kVA / 144 kW
ESP : Emergency Standby Power : 198 kVA / 158,4 kW
Voltage : 230-400V
Power factor : 0.8 (cosΦ)
Rotation speed : 1500 rpm
Number of phases : 3
Frequency : 50 Hz
Fuel tank autonomy at 75% : 12 hours

Engine specifications :

Number of cylinders : 6
Governor type : electronic
Specifications : 4-cycle engine, direct fuel injection , liquid-based cooling
Displacement : 7,25 L
Maximum standby power at rated rotation 1500tr/min : 155 kW
Maximum standby power at rated rotation 1500tr/min : 210 Cv
Compression ratio : 17,5:1
Engine starting type : electrical 24V
Air inlet system : Turbocompressed-intercooler

Alternator specifications :

Excitation system : Self Excited
AVR : Stamford
Voltage regulation type : electronic

Designed to meet high demands, this 200 kVA diesel genset from the Tiger range guarantees power for your electrical installation in the event of an outage. It secures supply to premises and equipment for hotels, construction sites, packing plants, farms, greenhouses, vineyards, sawmills and water treatments stations.

Fitted with a 4-pole thermal-magnetic circuit breaker with adjustable differential and a Deep Sea control panel, it is also available as an option with an automatic transfer switch.

Available in enclosed, containerised and open versions, it benefits from a 3-year warranty* (mainland France) and it also offers a Bi-Oil option (vegetable oil) and cogeneration option for producing heat and hot water.
