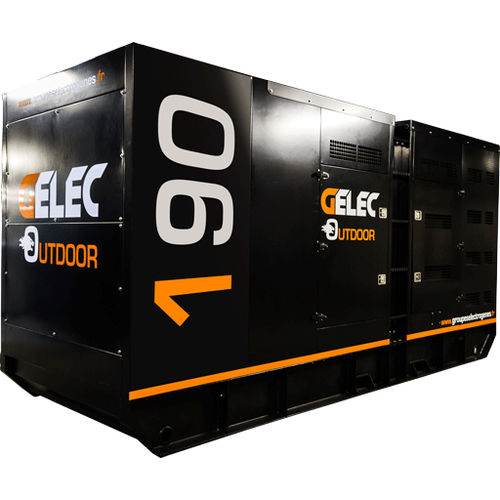

outdoor generator set / three-phase / diesel / containerized
190YC - TRI-EURO 3 series

{{requestButtons}}

Characteristics

  • Phase:

    three-phase

  • Motor type:

    diesel

  • Portability:

    containerized, stationary

  • Frequency:

    50 Hz

  • Options and accessories:

    outdoor

  • Cooling system:

    liquid-cooled

  • Rotational speed:

    1,500 rpm (9,425 rad.min-1)

  • Power in kVA:

    175 kVA (237.93 hp)

  • Sound level:

    Max.: 69 dB

    Min.: 10 dB

Description

GENERAL TECHNICAL DESCRIPTION

GENERAL DATAS
PRP Prime Rated Power : 175 kVA/140 kW
ESP Emergency Standby Power : 188 kVA/150.4 kW
Voltage : 230-400 V
Power factor (cosΦ) : 0,8
Rotation speed : 1500 rpm

Frequency : 50 Hz
Number of phases : 3
Acoustic pressure level at 7m : < 65 dB(A)
Fuel tank autonomy at : 8 h
Fuel tank capacity : 285 L

ENGINE
Model : YC6A230-D30
Number of cylinders : 6
Governor type : Electronic
Specifications : 4 stroke cycle engine, liquid-based cooling, common rail injection
Displacement : 7.25 L
Maximum standby power at rated rotation : 171 kW
Engine starting type : Electrical 24 v

ALTERNATOR
Amperage : 260.1 A
Technology : Brushless with electronic regulation
Voltage regulation type : Electronic
IP code : 23
Insulation class : H

CIRCUIT BREAKER
Type : Four poles thermal magnetic circuit breaker with adjustable differential switches
