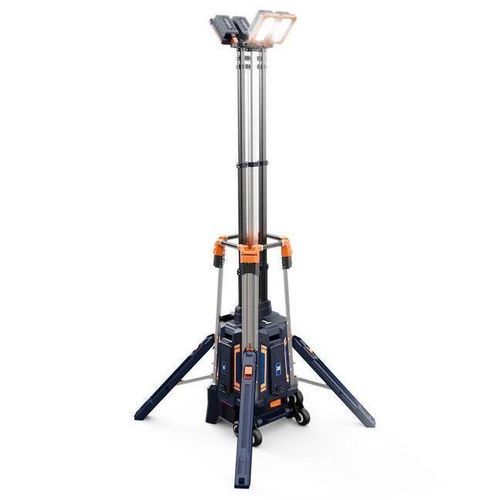

LED light tower E-LYNX

battery-powered

Overview
E-LYNX is a battery-powered mobile lighting tower designed for construction sites, emergency response, events and remote locations. Fully electric, it operates without fuel, direct emissions or engine noise. Engineered for fast deployment and use on challenging terrain, it can be handled and installed by a single operator.

Key benefits

• No onsite fuel required (electric operation)
• Rapid deployment by one person
• 360° coverage or long-range beam options
• All-terrain transportable, compact and lightweight
• Silent operation with zero exhaust emissions

Performance & autonomy
Maximum mains output: 65,000 lm
Battery output: up to 35,000 lm
Battery runtime: 10–100 hours depending on selected intensity
Batteries: 3 removable rechargeable D24 lithium batteries
4 adjustable brightness levels

Lighting
4 independently adjustable LED floodlights
Coverage modes: long-range beam, wide-area or 360° multi-point lighting

Design & transport

• Extended height: up to 5.3 m
• Weight: 52 kg
• Chassis: three wheels, self-locking feet, transport handle
• All-terrain wheels and tripod system for obstacle crossing
• Anti-theft locking for mast mechanism
• Compatible with light commercial vehicles and SUVs for transport

Durability & operating conditions
Ingress protection: IP65
Wind resistance: level 8
Multi-level stabilization for uneven ground
Use: indoor and outdoor, demanding conditions

Available accessories

• Dedicated charger
• AC converter 100–277 V
• 9-slot charging case
• Solar panel

Comparison (excerpt)
Criterion — E-LYNX electric — Diesel generator unit
Engine noise — No combustion engine — Running engine noise
Onsite fuel — No onsite fuel — Requires storage and refueling
Local emissions — No exhaust emissions during use — Exhaust gases present
Engine maintenance — No engine maintenance required — Regular mechanical servicing
Deployment & transport — Easy to move, compact and quick to install — Heavier, trailer-mounted and longer setup time

Technical specifications

• Mains power output: Up to 65,000 lm
• Battery power output: Up to 35,000 lm
• Floodlights: 4 independently adjustable LED floodlights
• Coverage: Long-range beam, wide-area or 360°
• Brightness levels: 4 adjustable levels
• Battery runtime: 10–100 hours depending on intensity
• Batteries: 3 removable rechargeable D24 lithium batteries
• Power supply: Battery or mains
• Extended height: Up to 5.3 m
• Weight: 52 kg
• Chassis: Three wheels, self-locking feet, all-terrain wheels
• Deployment: Single-person deployment in minutes
• Transport: Compatible with light commercial vehicle or SUV
• Ingress protection: IP65
• Wind resistance: Level 8
• Use: Indoor and outdoor, uneven terrain
• Accessories: Dedicated charger, AC converter 100–277 V, 9-slot charging case, solar panel
