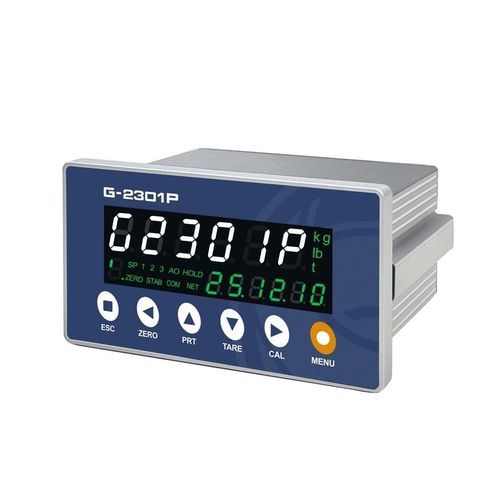

Digital weight indicator G-2301P

panel-mountIP65ProfiNet

Overview
The G-2301P is a panel-mount weighing controller engineered for bagging scales. It provides a compact footprint, stable operation and a dual-row digital display that simultaneously shows weight, feeding status, recipe number, target value, analog output and other process data. The controller is suited to packing applications in grain, feed, fertilizer, chemical and food industries.

Key Features

• Ingress protection: IP65
• High-precision measurement
• Highly integrated I/O and communications
• CE certified
• Advanced digital filtering

Hardware Highlights
Standard:

• Load cell interface
• 6-wire connection
• Serial port: 1 × RS485 or 1 × RS232
• I/O: 4 inputs and 10 outputs
• USB: 1 interface (data export, parameter backup/import)

Options:

• Analog output: 1 or 2 channels, 16-bit (current or voltage)
• Network: Modbus TCP/IP or Profinet

Features & Functions

• Flexible mechanism compatibility: Compatible with feeding systems such as pneumatic feeders, vibratory feeders, screw feeders and stepper-controlled gates; discharge devices including pneumatic actuators, reversible and rotary motors.
• Recipe management and traceability: Stores up to 100 product recipes and records up to 10,000 operations, alarms and packing events; data export via USB.
• One-touch printing: Supports quick printing of packing data to simplify record keeping and production tracking.
• Parameter backup and fast migration: Backup and restore controller parameters and calibration data via USB to reduce maintenance downtime.
• Dual lock protection: Keyboard lock and calibration lock to prevent unauthorized changes.
• Remote configuration and monitoring: Supports Weasy-Config PC software or web access for remote parameter setting and status monitoring.

Technical Specifications

• Model: G-2301P
• Product type: Panel-mount bagging scale weighing indicator
• Display: Dual-row digital display (weight, feeding status, recipe number, target value, analog output, etc.)
• Ingress protection: IP65
• Certification: CE
• Standard interfaces: Load cell; 6-wire connection
• Serial communication: 1 × RS485 or 1 × RS232
• I/O: 4 inputs and 10 outputs
• USB: 1 interface (data export, parameter backup/import)
• Analog output (optional): 1 or 2 channels, 16-bit (current or voltage)
• Network options: Modbus TCP/IP or Profinet
• Recipe capacity: Up to 100 product recipes
• Data storage: Up to 10,000 operation/alarm/packing records
• Functions: Advanced digital filtering, one-touch packing data printing, parameter backup/migration, dual lock protection, remote configuration/monitoring
• Typical applications: Packing in grain, feed, fertilizer, chemical and food industries
