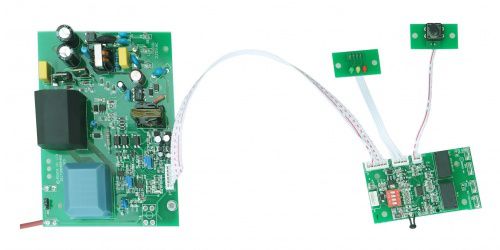

AC/DC power supply AF02C
single-outputdual-outputhigh-voltage

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output, dual-output
Other characteristics
high-voltage
Input voltage

220 V

Output voltage

Min.: 5 kV

Max.: 8 kV

Power

Min.: 5 W

Max.: 30 W

Description

The AF02C range of high voltage power supply is specially designed by Genvolt, for air and oil purification. With intelligent controls, cost efficiency and reliable performance in mind. The range includes single and dual output types, delivering power from 5 to 30W. Product features: 1.Closed-loop control, stable output voltage. 2.Intelligent circuit control achieved with a microcontroller. 3.Control mode: one plus one mode and one plus two mode. (Note: One plus one mode: one control PCB controls a power supply;One plus two mode: one control PCB controls two power supplies, where the settings will be applied to both power supplies. Please note that one of the power supplies switched off due to arcing will result in turning the other power supply off). 4.LED display and input buttons. 5.Airflow sensors for detecting airflow. 6.Programmable arc detection and protection. 7.Setting up rinse time, display, alarm and reset options. 8.Multiple fault protections. 9.Multiple dry contacts, remote information transmission available.
