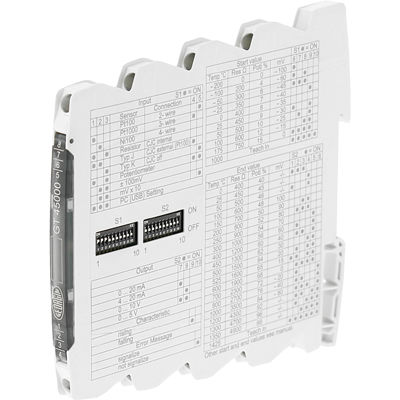

DIN rail signal conditioner / amplifier / 4-20 mA / temperature measurement
SG series

{{requestButtons}}

Characteristics

  • Format:

    DIN rail

  • Options:

    amplifier, 4-20 mA

  • Applications:

    temperature measurement

Description

Mounting: rail DIN ou rail alimenté
Inputs: current, voltage, Pt100, TC sensors...
Outputs: 4/20mA, current, voltage
Power supply: 16.8 to 31.2 Vdc
Consumption: 0.8 to1.2W
Accuracy: 3KV between input, output and power supply

Models:
GT 45000 - Temperature transmitter
GS 75000 - Shunt resistance isolation amplifier / voltages in mV
GN 25000 - Isolation amplifier
GN 21000 - Signal separator / repeater
GH 11000 (1 channel) and GH 11020 (2 channels) - Isolator powered by the loop
GC 52500 - HART transmitter power supply
GB 64000 - Bipolar isolation amplifier

Characteristics

Complete range of signal conditioners

6.2 mm thick and only 3.1 mm per channel for the two-channel versions

High accuracy and repeatability 3KV between input, output, and power supply in accordance with the EN 61140 standard

Low consumption (0.8 W to 1.2 W)

Five-year guarantee
