Mobile fan PM-250

fume exhaustextractionventilation

Overview

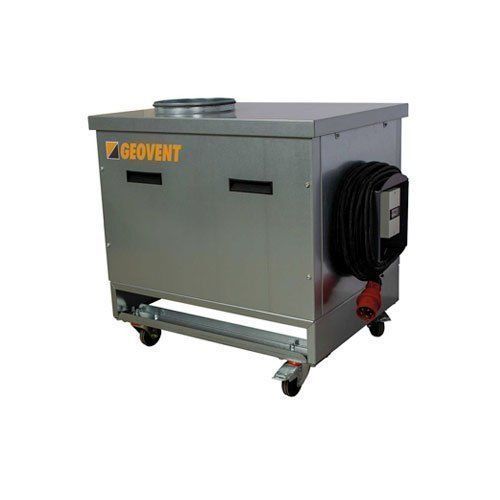

The Geovent PM-250 is a mobile extraction fan designed for removal of welding fumes, vapours and other airborne pollutants where fixed extraction is not feasible. It can also supply fresh air to confined spaces such as tanks and cargo holds. The unit combines a compact, durable build with components suited for on-site industrial ventilation tasks.

Key benefits

• Portable extraction and ventilation solution for flexible positioning.
• Efficient removal of welding fumes, vapours and airborne contaminants.
• Capability to supply fresh air to confined spaces (tanks, cargo holds).
• Durable hot-dip galvanised steel construction with internal noise insulation.
• Two lightweight 5 m ø200 mm PVC hoses (poly-weave reinforced) for easy routing.
• Powder-coated aluminium magnetic extraction funnel for targeted fume capture.
• Heavy-duty wheels with locks for stable mobility on site.

Included / delivered items (as described)

• Two 5 m long ø200 mm lightweight PVC hoses reinforced with poly-weave.
• Powder-coated aluminium extraction funnel with strong magnet (magnetic hood).
• Four heavy-duty wheels with locks.

Applications
Suitable for workshops, construction sites and industrial environments requiring mobile ventilation or temporary extraction where fixed systems are impractical. Typical uses include welding fume extraction, vapour removal and supplying breathable air to confined spaces.

Construction and design
Built from hot-dip galvanised steel with internal noise insulation. Compact, mobile configuration with robust components for long-term industrial use and easy transport between work locations.

Characteristics / technical specifications

• Material: Galvanised steel
• Installation: Mobile
• Max. air volume: 2,950 m³/h without hoses; 2,400 m³/h with included flexible hoses
• Voltage: 3 x 450 V
• Motor: 4.0 kW
• Amps: 7.2 A
• Frequency: 50 Hz
• Sound level: 67 dB(A)
• Dimensions (L x W x H): 784 x 615 x 652 mm
• Weight: 160 kg
• Hoses: 2 x 5 m, ø200 mm PVC, poly-weave reinforced
• Extraction funnel/hood: Powder-coated aluminium with strong magnet
• Mobility: Heavy-duty wheels with locks
