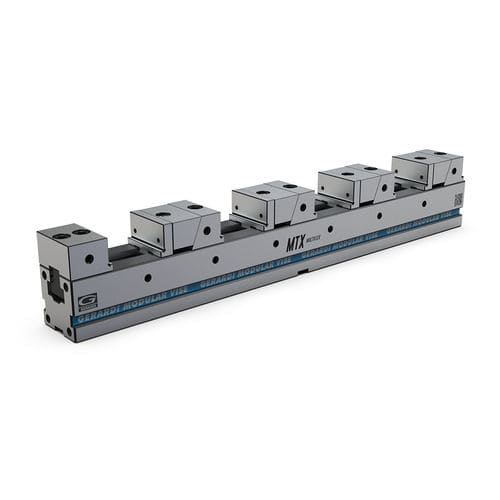

Flexible vise Multiflex

for machine toolsmanualvertical

The most versatile vise for flexible clamping of multiple workpieces of various sizes. The MULTIFLEX series vises are a totally new concept of modular clamping system able to maximize the machine table capacity and thus to increase its productivity. This system is designated for clamping several workpieces at the same time on the machine tool table, thus reducing tool changeover times. HIGHEST ACCURACY in positioning and alignement (± 0,02 mm) thanks to the ground rack teeth on both the base and the fixed jaws. VERTICAL SET UP through spacers, tombstones or vise-towers. MULTIFLEX vises can be vertically assembled linked each other or clamped to specific workholding structures. CLAMPING ACCURACY AND GUIDED PULL DOWN LAW ACTION thanks to the ground comb-teeth even between the fixed and movable jaws.
