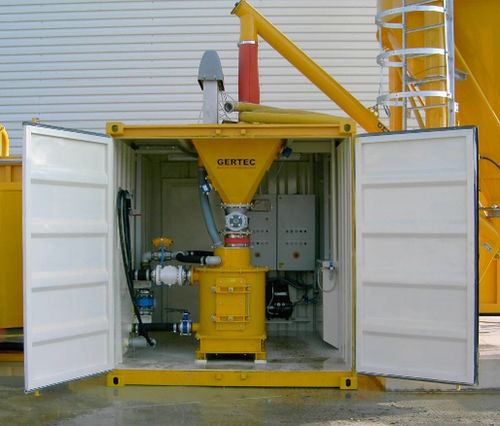

Continuous mixer DM-60-EC

dynamicverticalconstruction

Technical Data / Performance Data • Slurry density max. 1,2 t/m³ • Mixing components 1 liquid / 1 solid • Solids grain size max. 1 mm • Dosage liquids manual hand control valve • Dosage solids electrical rotary valve speed adjustable • Dosing capacity solids 2) 500 - 4800 kg/h 2) • Mixer outlet Storz A 4“ standard coupling DIN 14307, alternatively 4“ IG • Water connection • Storz B • 3“ standard coupling DIN14307,max.6 bar; alternatively 2 ½” IG • Power connection CEE-plug 63 A, 5-pole • Voltage 400V; 50 Hz • Dimensions 3,0 x 2,44 x 2,59 m ( L x W x H) Application areas: • Tunnelling • Special foundation engineering • Shield tunnelling • Hydro shield operation • Diaphragm wall • Cut-off wall Mixing of: • Bentonite slurries • Cut-off wall components
