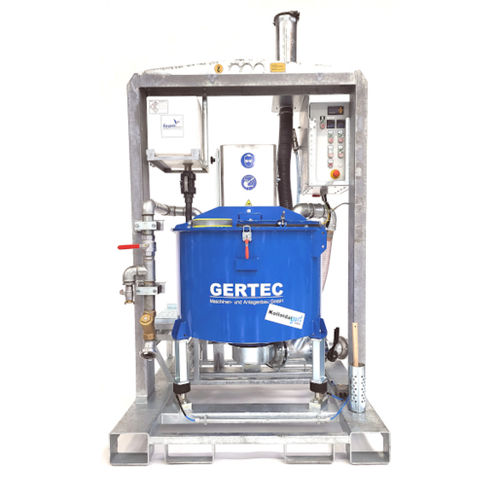

Dynamic mixer CM-280-E-strong

verticalbatchconstruction

Technical Data / Performance Data • Effective mixer volume (with direct foaming) appr. 90 - 220 l • Minimum quantity of mixed water appr. 90 l • Minimum quantity of mixed water Chemical foaming ahead appr. 60 l • Mixer filling level (bag loading) appr. 1195 mm • Grain size max. 2 mm • Scale display (dosing of mixed water, binder) 0,0 – 600,0 kg • Dosage liquid 2“ Ball valve, hand operated • Dosage solid(s) bagged material manually sheetback emptying grid • Silo goods / Big-Bag via pipe screw Manual on/off • Water connection Storz C 2“ coupling DIN14307, max.6 bar; or Geka-claw coupling • Cleaning connection DN 20 Geka-claw coupling • Butterfly valve manual 2 x DN 100 Butterfly valve manual • Dosage liquid additive* appr. 50 ml/sec* Time control (calibration, necessary depending on product) • Propellant tank volume (H2O2) max. 30 l • Filling / Dosage propellant tank manually Filling opening • Drainage propellant tank manually Ball valve, hand operated • Power connection CEE-Stecker 32 A, 5-polig • Voltage 400 V; 50 Hz • Transport dimensions 1,3 x 1,4 x 2,2 m ( L x W x H) • Working dimensions 1,3 x 1,4 x 2,7 m ( L x W x H) (inkl. Filter) Mixing of: • Cement suspensions • binder suspensions insulation technology • other suspensions containing solids (after technical clarification)
