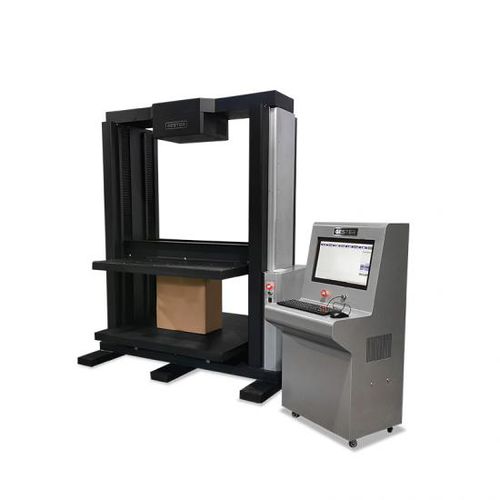

Compression testing machine GT-N02D

computer-controlledmanualfor packaging

Four-column Carton Compression Tester (computer control) GT-N02D Product Introduction Application: This computer control Carton Compression Tester uses high-precision force sensor to test the resistance value of pressure and display it directly. The most direct equipment for testing the pressure resistance of containers made of cardboard or other materials. It is used to determine the cargo capacity and stacking height of the carton. It is suitable for the compression and holding test of various packages and cartons. The test results can be used as an important reference for the stacking height of the finished packaging box or an important basis for packaging box designing. box compression test Standards: ISO2872, ISO2874, ASTM D642 , TAPPI T804 Feature • - Power system: servo motor + servo drive + worm gear reducer + ball screw • - Box Compression Strength Tester Speed range: 0.001-500mm/min (adjustable) • - After the test, it will automatically store and return to the origin • - Data transmission: RS232 transmission • - Box Compression Tester test space: test width≈1600mm; board travel space≈1600mm • - Displacement: Encoder 1000 P/R, 4 times better accuracy • - With LINE DRIVE encoder with anti-interference ability and strong displacement analysis • - 0.001mm. • - Safety device: overload emergency stop device, upper and lower stroke limit device, leakage automatic power off system, automatic interrupt stop function. • - Manual control mode: increase the manual operation box.
