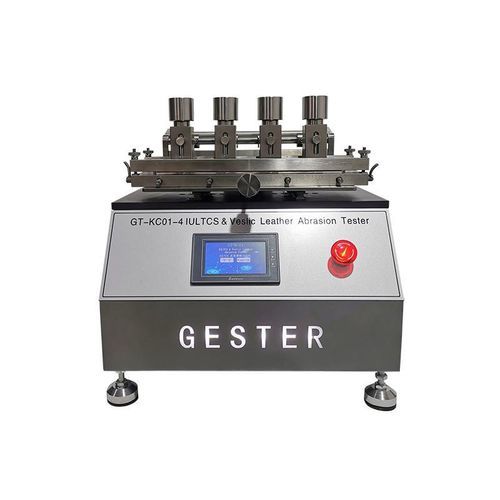

Abrasion-resistance test device crockmeter GT-KC01

Product overview
The GESTER Rub Fastness Tester GT-KC01 evaluates color fastness, rubbing and abrasion resistance of leather, plastics and textile materials. It reproduces reciprocating wear under controlled pressure using white wool felt as the abrasive to quantify color change, fading and staining. The instrument supports both dry and wet test modes and is suitable for manufacturers and quality control laboratories assessing durability and color fastness.

Highlights / uses

• Specifically designed for color fastness to rubbing and abrasion testing of leather, plastics and textiles
• Reciprocating mechanism simulates real-world wear under defined pressure
• Capable of dry and wet abrasion tests
• White wool felt abrasives used to measure color change and staining

Product identification
Brand: GESTER
Item No.: GT-KC01
Order (MOQ): 1
Lead time: 15–30 days

Key specifications
Model: GT-KC01-1 | GT-KC01-2 | GT-KC01-4
Positions: 1 | 2 | 4
Testing head area: 15 mm × 15 mm
Movement speed: 40 ± 2 cycles/min
Rubbing stroke: 35–40 mm
Rubbing finger mass: 500 g
Additional weight mass: 500 g (optional)
Fixtures distance: 80 mm
Sample size: 120 × 20 mm
Sample tension extension range: 0–20%
Power supply: AC 220 V 50/60 Hz
Applicable standards: DIN 4843; ISO 11640; SATRA PM 173; AS/NZS 2210.2 §7.3; QB/T 2537; GB/T 20991 §7.3; ISO 20868; GB/T 40920; EN ISO 20344 §7.3; ISO 17700 Method A; GE-29

Accessories
Standard accessories: 1 pc/position, 500 g weights, power line
Optional accessories: standard wool pads; GT-KD20 pneumatic sample cutter (cutter: 120 × 20 mm); gray scale for color change; gray scale for staining

Notes
The tester uses a precise reciprocating mechanism and white wool felt abrasives to deliver reproducible measurements of color change and staining in both dry and wet conditions, enabling comprehensive evaluation of material color fastness and wear resistance.

Characteristics / technical specifications

• Model variants: GT-KC01-1, GT-KC01-2, GT-KC01-4
• Testing head area: 15 mm × 15 mm
• Movement speed: 40 ± 2 cycles/min
• Rubbing stroke: 35–40 mm
• Rubbing finger mass: 500 g (plus optional 500 g additional weight)
• Fixtures distance: 80 mm
• Sample size: 120 × 20 mm
• Sample tension extension range: 0–20%
• Power supply: AC 220 V 50/60 Hz
• Applicable standards: DIN 4843; ISO 11640; SATRA PM 173; AS/NZS 2210.2 §7.3; QB/T 2537; GB/T 20991 §7.3; ISO 20868; GB/T 40920; EN ISO 20344 §7.3; ISO 17700 Method A; GE-29
• Standard & optional accessories: 500 g weights; power line; standard wool pads; pneumatic sample cutter (120 × 20 mm); gray scales for color change and staining
