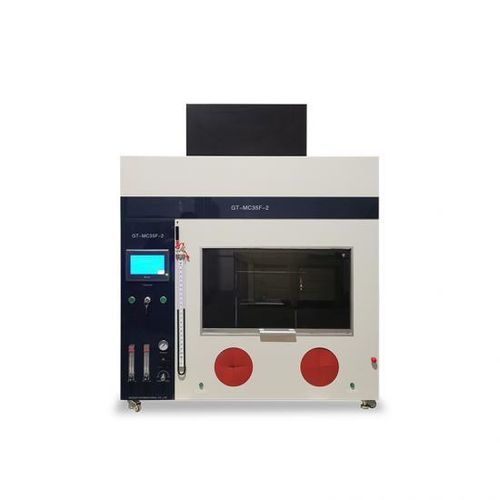

Flammability tester GT-MC35F-2

decolorizingfor coating

Product Overview
Horizontal and Vertical Flame Chamber GT-MC35F-2. Horizontal and Vertical Flame Chamber is manufactured using automobile manufacturing CNC machining centers with 2mm cold plate forming for a high-grade appearance. Outdoor-grade powder coating technology is applied for high texture and no discoloration. Imported control components for safe and reliable operation. Dedicated burner according to ASTM D5025; easy to adjust flame height with stable performance.

Product Details

• Brand: GESTER
• Item NO.: GT-MC35F-2
• Order (MOQ): 1
• Payment: T/T
• Shipping Port: Xiamen
• Lead Time: Have in stock

Standards

• UL 94
• IEC 60695-11-3
• IEC 60695-11-4
• ISO 9772.3/6722
• ASTM D635/3801/4804/4986

Control System
Touch Screen Control; differential gauge and pressure reading as specified in key specifications.

Key Specifications (table)
Internal dimensions: 120 x 60 x 112 cm (W x D x H)
External dimensions: 120 x 65 x 150 cm (W x D x H)
Inside cubage: 0.8 m3
Flame (lamella) height / linear parameter: 15-175 mm/min (can be adjusted)
Gas flowmeter: 20-200 ml/min (can be adjusted)
Gas pressure (gas press): 5-200 mm (can be adjusted)
Flame angle: 0-45 degree (can be adjusted)
Burner height adjustment: 50 mm
Sample vertical move distance: 450 mm
Sample horizontal move distance: 180 mm
Burn time: 0-99.99 s (can be adjusted)
After-flame / After-glow time: 0.1 s - 99.99 s (can be adjusted)
Timing precision: 0.01 s

Main Body Assembly
Box material / forming: both inside and outside use 2mm cold plate CNC forming
Inside lamp source: explosion-proof light (Osram or Philips) 40W halogen lamp
Exhaust system: standard 180W exhaust fan
Viewing window: 5mm armoured glass (60 x 40 cm)
Viewing window design: electrical counterweight principle, mute rail design for quiet operation
Transmit mechanism: axis linear bearing drive with chrome design
Clamp design: imported anodized aluminum

Functions and Accessories
Standard accessories:

• HB (ASTM D 635, ISO 1210) - Horizontal Burning Test and test fixture
• V-0-1-2 (ASTM D 3801, IEC 60695-11-10) - 50W (20 mm) Vertical Burning Test and test fixture
• Flame height gauge

Optional accessories:

• 5VA/5VB (ASTM D 5048, ISO 9772, IEC 60695-11-20) - 500 W (125 mm) Vertical Burning Test and test fixture
• HBF/HF 1-2 (ASTM D 4986) - Horizontal Burning Foamed Material Test and test fixture
• VTM-0-1-2 (ASTM D 4804, ISO 9773) - Thin Material Vertical Burning Test and test fixture
• Thermocouple and Temperature Calibration Device
• Medical Absorbent Cotton

Additional Notes
Dedicated burner design for relevant standards. Flame height and gas flow/pressure adjustable to meet test requirements. Touch-screen control available per control system specification.

Caractéristiques / spécifications techniques

• Model: GT-MC35F-2
• Brand: GESTER
• Internal dimensions (W x D x H): 120 x 60 x 112 cm
• External dimensions (W x D x H): 120 x 65 x 150 cm
• Internal volume: 0.8 m3
• Flame linear parameter / lamella height: 15-175 mm/min (adjustable)
• Gas flow: 20-200 ml/min (adjustable)
• Gas pressure adjustment range: 5-200 mm (adjustable)
• Flame angle: 0-45° (adjustable)
• Burner height adjustment: 50 mm
• Sample vertical move distance: 450 mm
• Sample horizontal move distance: 180 mm
• Burn time range: 0-99.99 s (adjustable)
• After-flame / after-glow timing: 0.1 - 99.99 s (adjustable)
• Timing precision: 0.01 s
• Lamp source: explosion-proof halogen (Osram or Philips) 40W
• Exhaust fan: standard 180W
• Viewing window: 5mm armoured glass (60 x 40 cm)
