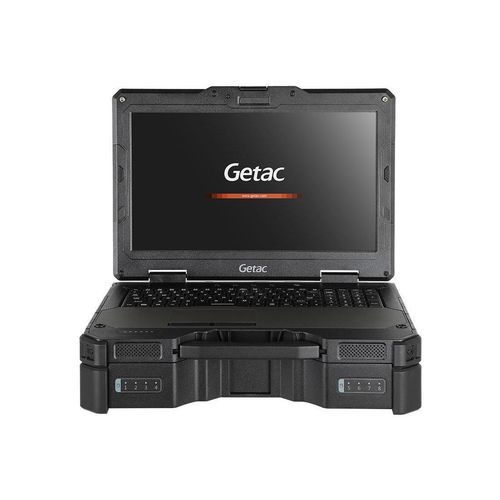

MIL-STD-810H laptop computer X600 Server

webcam5-megapixel camerawith smart-card reader

Overview
The Getac X600 Server is a fully rugged commercial off-the-shelf (COTS) mobile server in a foldable, portable laptop form factor, engineered to deliver cabinet-class server capabilities for mobile command-and-control and field deployments.

Key Capabilities

• Mobile command-and-control: deployable server functions in a notebook form factor for rapid field operations.
• Virtualisation-ready: Windows Server 2022 with support for multiple independent virtual machine platforms and flexible resource allocation.
• Hardware RAID support: onboard RAID controller (RAID 0/1/5) for capacity, performance and redundancy (RAID 5 requires multiple drives).
• User-serviceable hot-swap: tool-less removable SSDs and hot-swappable batteries for secure, continuous operation.

Performance
Configured with an Intel® Xeon® W-11865MRE vPro® mobile processor (Intel® Turbo Boost up to 4.7 GHz; 24 MB cache) and integrated Intel® UHD Graphics to accelerate display tasks and local processing.

Storage & Expandability
Supports multi-drive Enterprise PCIe SSD configurations, X-Bay expansion and optional capacities up to configurations listed (page references up to ~22 TB depending on configuration). Multimedia bay options include optional DVD or Blu-Ray drives. Disk management supports RAID 0/1/5.

Display & Input
15.6" FHD (1920 x 1080) LumiBond® sunlight-readable display (1,000 nits) with optional capacitive multi-touch. LED-backlit membrane keyboard with integrated numeric keypad; touchscreen and touchpad options available per configuration.

Connectivity
Fixed wired I/O includes dual 2.5GBASE-T Ethernet, Thunderbolt™ 4 (USB-C), USB 3.2 Gen 2 Type-A ports, HDMI 2.0, DisplayPort, optional external VGA, serial port (9-pin D-sub) and a 5MP webcam for field connectivity and multi-network/server deployment.

Security
Includes TPM 2.0, smart card reader, Kensington lock support, Getac Disk Wipe utility for secure SSD erasure, Intel® vPro® technology and optional Absolute Persistence. Note: NIST SP 800-88 Purge is not supported on hardware RAID configurations.

Ruggedness & Environmental
Designed for extreme environments: MIL-STD-810H and MIL-STD-461G certified, IP66-rated for dust/water protection. Operating range: -29 °C to +63 °C; storage range: -51 °C to +71 °C. Vibration and drop resistance are configuration-dependent.

Power & Batteries
AC adapter options include 230W (standard) with compatibility for optional 150W adapters. Standard dual user-removable batteries (10.8V, typical 6900mAh; min. 6600mAh) are hot-swappable to maintain continuous operation; RAID configurations may use additional/internal batteries.

Additional Features

• Preinstalled software: Getac Utility; optional Absolute Secure Endpoint / Absolute Secure Access.
• Optional accessories: backpacks, spare batteries, multi-bay chargers, spare SSD kits, X-Bay SSD kit, capacitive stylus, protection film and multimedia drives. Warranty: standard 3 years Bumper-to-Bumper (accidental damage included).

Tech Specs (summary)

• Generation: G1
• OS: Windows Server 2022
• Processor: Intel® Xeon® W-11865MRE vPro® — up to 4.7 GHz, 24 MB cache
• Memory: 32 GB DDR4 standard (options: 64 GB / 128 GB)
• Storage: Enterprise PCIe SSD options; multi-drive and RAID support (RAID 0/1/5); configurable up to listed maximums
• Display: 15.6" FHD (1920 x 1080), 1,000 nits LumiBond®; optional capacitive multi-touch
• I/O: Thunderbolt™ 4, USB 3.2 Gen 2, HDMI 2.0, DisplayPort, dual 2.5GBASE-T Ethernet, serial, external VGA, 5MP webcam
• Security: TPM 2.0, Getac Disk Wipe, smart card reader, Kensington lock, Intel® vPro®
• Rugged: MIL-STD-810H, MIL-STD-461G, IP66; operating -29 °C to +63 °C
• Dimensions / Weight: X600 Server: 412 x 322 x 52.5 mm — approx. 4.41 kg; RAID variant: 412 x 322 x 108.8 mm — approx. 8.51 kg (varies by configuration)
