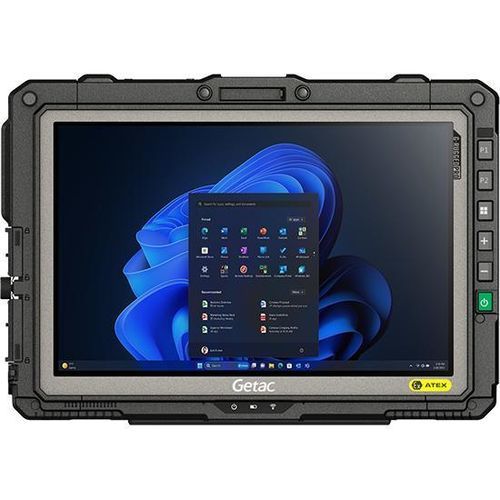

Windows 11 Pro tablet UX10-EX

10.1"12th Generation Intel® Core™Intel® Core i5-1235U

Overview
The Getac UX10-EX is an ATEX and IECEx certified explosion-protected tablet designed for use in potentially explosive industrial environments. It offers portable high-performance computing with optional Zone 2/22 certification and configurations based on 12th Gen Intel processors, Thunderbolt 4 and LumiBond sunlight-readable display technology.

Key features

• 12th Generation Intel® Core™ processors (i5 / i5 vPro / i7 / i7 vPro options)
• Thunderbolt™ 4 and USB 3.2 Gen 2 connectivity
• Wi‑Fi 6E (Intel AX211) and Bluetooth 5.3; optional 4G LTE or 5G with integrated GPS
• 10.1" WUXGA (1920 x 1200) LumiBond display, 1,000 nits, rain and glove touch capable
• Detachable keyboard with retractable hard handle (optional); optional RFID reader and Windows Hello camera
• Rugged certifications: MIL-STD-810H, IP66 and ATEX/IECEx Zone 2/22

Display & Input

• 10.1" WUXGA TFT LCD (1920 x 1200) with protection film and LumiBond sunlight-readable technology (1,000 nits)
• Dual-mode touchscreen supporting multi-touch and digitizer
• 5MP front webcam (or optional Windows Hello camera) and 8MP rear autofocus camera

Performance & Storage

• Standard: Intel® Core™ i5-1235U; optional i5-1245U vPro, i7-1255U, i7-1265U vPro
• Graphics: Intel® UHD Graphics
• Memory: 8GB DDR4 standard; optional 16GB / 32GB DDR4
• Storage: 256GB PCIe NVMe SSD standard; optional 512GB / 1TB PCIe NVMe SSD

Connectivity & Expansion

• Intel® Wi‑Fi 6E AX211 (802.11ax) and Bluetooth 5.3
• Optional mobile broadband: 4G LTE (with integrated GPS) or 5G Sub-6 (with integrated L1/L5 GPS); optional dual SIM (Micro-SIM and eSIM)
• I/O: Audio combo, DC-in, USB 3.2 Gen 2 Type-A x1, Thunderbolt™ 4 Type-C x1; optional SIM slot and Windows Hello camera
• Optional top-side expansion: 1D/2D imager barcode reader or HF RFID reader

Security

• TPM 2.0 and Kensington lock
• Optional Intel® vPro® technology
• Optional HF RFID reader and Windows Hello face-authentication camera
• Optional Absolute Persistence® endpoint security

Ruggedness & Environmental

• MIL-STD-810H certified; IP66 (dust-tight and high-pressure water resistant)
• Vibration resistant and 6 ft (1.8 m) drop resistant (operating), third-party tested
• Operating temperature: 0°C to 55°C (32°F to 131°F); Storage: -51°C to 71°C (-60°F to 160°F)
• Humidity: up to 95% RH, non-condensing
• Explosion protection: ATEX / IECEx Zone 2/22; Ex II 3G Ex ic op is IIC T4 Gc; Ex II 3D Ex ic op is IIIC T130°C Dc

Power & Battery

• AC adapter: 65W, 100-240VAC, 50/60 Hz (standard)
• Battery: Li-ion 11.1V typical 4200mAh (min. 4080mAh) x1 (standard)
• Optional high-capacity Li-ion battery: 10.8V, 9240mAh x1

Audio & Peripherals

• Integrated speakers and dual-array microphone
• Optional digitizer pen and accessories

Pre-installed & Optional Software

• Pre-installed: Getac Utility, Getac Camera, Getac Geolocation, Getac Barcode Manager, trial utilities
• Optional: Absolute Secure Endpoint, Getac Monitoring, Getac VGPS Utility, full versions of Getac Driving Safety Utility and KeyWedge

Accessories (examples)

• Standard 4200 mAh and high-capacity 9240 mAh batteries
• Dual-bay and eight-bay chargers; 65W and 100W AC adapters
• Digitizer pen, protection films, shoulder straps, harnesses, rotating hand strap with kickstand
• Getac DS100 USB-C docking station with AC adapter

Technical specifications

• Generation: G3
• Operating System: Windows 11 Pro
• Processor: Intel® Core™ i5-1235U (options: i5-1245U vPro, i7-1255U, i7-1265U vPro); Max Turbo up to 4.8GHz depending on CPU
• Graphics: Intel® UHD Graphics
• Display: 10.1" WUXGA (1920 x 1200), protection film, 1,000 nits LumiBond
• Memory: 8GB DDR4 standard; optional 16GB / 32GB
• Storage: 256GB PCIe NVMe SSD standard; optional 512GB / 1TB
• Keyboard / Buttons: Power button; 5 programmable tablet buttons
• Pointing Device: Touchscreen (multi-touch) and digitizer
• Cameras: 5MP front (or optional Windows Hello), 8MP rear autofocus
• I/O: Audio combo, DC-in, USB 3.2 Gen 2 Type-A x1, Thunderbolt™ 4 Type-C x1; optional SIM slot
• Communication: Intel® Wi‑Fi 6E AX211; Bluetooth v5.3; optional 4G LTE or 5G Sub-6 with integrated GPS; optional Dual SIM
• Security: TPM 2.0; Kensington lock; optional Intel vPro; optional HF RFID reader; optional Absolute Persistence®
• Power: 65W AC adapter; Li-ion 11.1V 4200mAh standard; optional 10.8V 9240mAh
• Dimensions (W x D x H): 279 x 194.5 x 23.9 mm
• Weight: 1.38 kg (varies by configuration)
• Rugged: MIL-STD-810H; IP66; vibration & 6 ft (1.8 m) drop resistant
• Environmental: Operating 0°C to 55°C; Storage -51°C to 71°C; Humidity 95% RH non-condensing
• Explosion Protection: ATEX / IECEx Zone 2/22
