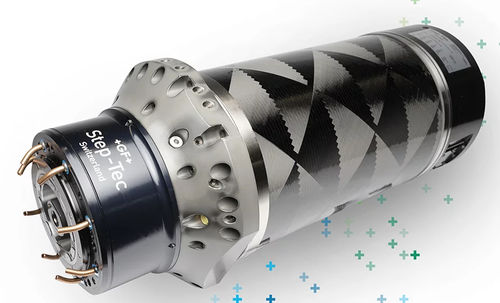

Grinding spindle HPC 240
millingmonitoringmotorized

grinding spindle
grinding spindle
grinding spindle
Add to favorites
Compare this product


Characteristics

Function
for grinding, milling, monitoring
Other characteristics
motorized
Rotational speed

Max.: 25,000 rpm
(157,079.63 rad.min-1)

Min.: 10,000 rpm
(62,831.85 rad.min-1)

Diameter

240 mm
(9.4 in)

Description

The HPC 240 platform offers a broad range of metal-working solutions, not just outstanding spindles. The platform concept serves mold makers and part-production applications. Ideal for roughing and finishing precision parts, the HPC 240 spindle platform accommodates housing diameters as small as 240mm, with speeds from 10,000 to 25,000 rpm, power from 24 to 50 kW S1 and torque from 52 to 248 Nm S1. Twin Air Sealing (TAS) broadens application suitability to include contamination-free production in dirt-sensitive materials such as graphite. Easy-to-implement tilting head solution boosts efficiency. Monitoring options The Spindle Diagnostic Module (SDM; black box), combined with Step-Tec's patented acceleration sensor, records all process-relevant data, including vibration along three axes. SDM also monitors and time stamps collision events > 30g. Compensation Any undetected spindle movement or temperature increase can cause inaccuracies and flawed surface quality on the finished workpiece. Step-Tec provides various monitoring options for machine compensation, including several resistance thermometers, placement for traditional thermal compensation and optional Axial Movement Sensor (AMS). The combination of these data-acquisition capabilities with Step-Tec's outstanding thermal stability offers the best possible machine compensation to achieve outstanding precision and surface finishes.
