Precision workpiece clamping chucks

... height H2. This enables multiple workpiece contours to be machined into one collet. Repeat accuracy for workpiece: +/-0.03 Repeat accuracy after replacing the collet +/- 0.02 The ...

... specifically designed to meet requirements for a low clamping force with high precision. For internal and external holding of cylindrical workpieces. The jaws are moved in and out by ...

Rotational speed: 2,000, 3,000, 2,500, 1,500, 2,250 rpm

... machines. Every chuck is filled with oil to guarantee an efficient chuck operation. The sealed design of these chucks has been further improved to either prevent contamination from swarf ...

... Indexing chuck in many different designs Combined chuck Customised solutions adjusted to finishing processes according to customer requirements Benefits Great know-how in engineering All solutions ...

Clamping range: 150 mm
Rotational speed: 3,000 rpm

Clamping Task - Precise clamping of different workpieces · OD clamping on shaft on two planes · Quick change-over of top jaws; without regrinding of the clamping ...

Clamping range: 180 mm
Rotational speed: 2,500 rpm

Clamping tasks - Precise and rigid clamping of varying workpieces · External clamping with short clamping lengths · Using axial end-stop with checking ...

Clamping range: 450 mm
Rotational speed: 300 rpm

... – Stable clamping Clamping system – Hydraulically operated four-jaw chuck with special functions · fast radial stroke of 39 mm · precision radial stroke of 2 mm · ...

Clamping range: 180 mm
Rotational speed: 1,500 rpm

Clamping task – Centric holding of blanks with high run-out accuracy – Stable clamping of the work pieces – Covering a wide clamping range Clamping system – Hydraulically ...

Clamping range: 150 mm
Rotational speed: 1,500 rpm

... deformation-free clamping of the work pieces at the width across flats – Covering a wide clamping range Clamping system – Hydraulically operated lever chuck – Slip ...

Clamping range: 180 mm
Rotational speed: 5,000 rpm

Clamping task – Stable and precise clamping at defined clamping positions – Prevention of disruptions or damage to the work pieces, caused by swarf Clamping system – ...

Clamping range: 350 mm
Rotational speed: 2,200 rpm

... Optimized for vertically mounted chuck configuration Clamping system – Cylinder actuated swivel finger chuck with · Axial clamping via three swivel fingers on pitch ...

Clamping range: 448 mm
Rotational speed: 1,000 rpm

Clamping task – Mounting and referencing of the workpieces inside of the bores – Axial clamping of the workpieces – Short change over times (<= 5 minutes) – Simple ...

Clamping range: 10 mm - 150 mm

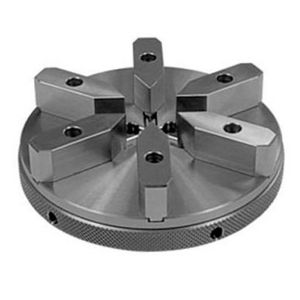

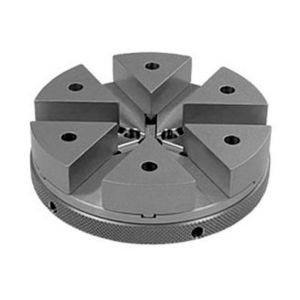

Clamping chuck JF ultra-flat with a set of soft top jaws type A

Clamping range: 10 mm - 150 mm

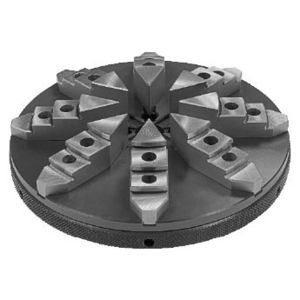

Clamping chuck JF ultra-flat with a set of soft top jaws type B

Clamping range: 10 mm - 150 mm

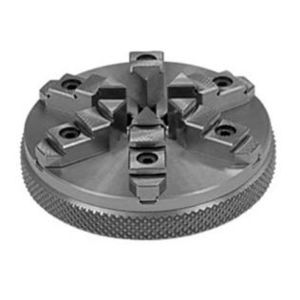

Clamping chuck JF ultra-flat with a set of soft top jaws type C

Clamping chuck JF ultra-flat with a set of soft top jaws type W

Clamping chuck JF ultra-flat with a set of soft top jaws type DW

Clamping range: 1 mm - 210 mm

Clamping chuck JF ultra-flat with a set of reversible, case-hardened, ground top jaws type D

Clamping range: 1 mm - 210 mm

Clamping chuck JF ultra-flat anti-corrosive (Reinox) particularly smooth running, with a set of reversible, case-hardened, ground top jaws type D

Clamping range: 16 mm - 90 mm

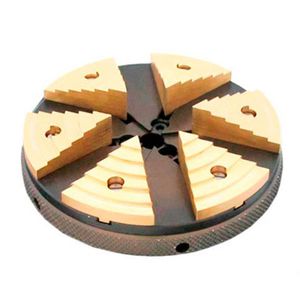

Clamping chuck JF ultra-flat aluminum, inclusive 1 set of brass top jaws, type A, B, C

Clamping range: 16 mm - 65 mm

Ultra-flat small face plate with 4 hard, individually adjustable, reversible jaws Technical details Lateral runout: 10 μ Incl. open-ended and socket-head wrenches Anti-corrosive (Reinox), see Gtd Options Shank B8 (Item no. ...

Clamping range: 1 mm - 222 mm

Clamping chuck 3 ZF ultra short, flange assembly, inclusive 1 set of jaws type A and B

Clamping range: 80 mm - 400 mm

Precision spiral ring chuck made of steel with cylindrical centering according to DIN 6350. The chuck enables uniform clamping force by centric clamping ...

Clamping range: 80 mm - 162 mm

... Horizontal and vertical mounting Highest clamping force and rigidity Flexible design Material: steel Finish: surface hardened and precision grinded Repetition accuracy < 0,01 mm Explanation ...

Clamping range: 84, 106, 122, 136 mm

Mechanical manual chucks with high precision, holding force and rigidity for use on machining centers, prototyping and metrology. The version SK -2 provides, due to the optimized force transmission in ...
