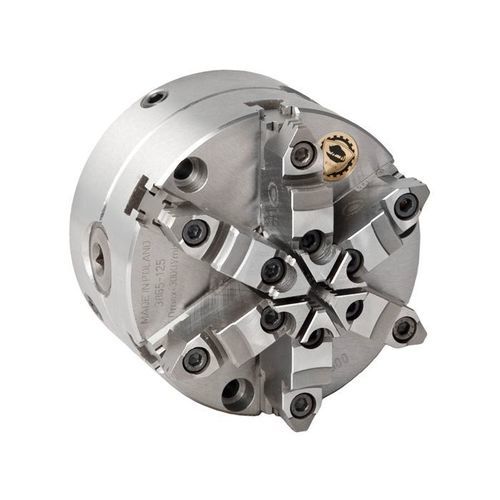

Workpiece clamping chuck for turning applications 3865-5front clampingprecisionself-centering
Add to favorites
Compare this product
Characteristics
- Application
- for turning applications
- Other characteristics
- self-centering, steel, precision, front clamping
- Number of jaws
- 6-jaw
- Clamping range
5 in
Description
Overview
6-jaw self-centering scroll chuck with fine adjustment for precision concentric clamping. Front-mount design with through-hole for long workpieces.
Product details
Documents attached
Catalog page, technical data and user manual available for this product (see product page for attachments).
Technical specifications
6-jaw self-centering scroll chuck with fine adjustment for precision concentric clamping. Front-mount design with through-hole for long workpieces.
Product details
- Size: 5" (measurement unit: inch)
- Product type: 3865-5
- Number of jaws: 6
- Type of jaws: 2-piece jaws (hard 2-piece jaws)
- Mounting: Front mount
- Body material: Steel
- Accuracy class: Precision with fine adjustment
- Through-hole: Yes
- Increased clamping force: No
- Chucks with large through-hole: No
- SKU: 353865530401
- SKU USA: 7-868-0500
- Promo: No
Documents attached
Catalog page, technical data and user manual available for this product (see product page for attachments).
Technical specifications
- Model / Product type: 3865-5
- Size: 5"
- Number of jaws: 6
- Type of jaws: 2-piece jaws; hard 2-piece jaws
- Mounting: Front mount
- Measurement unit: inch
- Body material: Steel
- Accuracy class: Precision with fine adjustment
- Through-hole: Yes
- Increased clamping force: No
- Chucks with large through-hole: No
- SKU: 353865530401
- SKU USA: 7-868-0500
