DIN workpiece clamping chuck 3534-315-8
for turning applicationsstandardself-centering

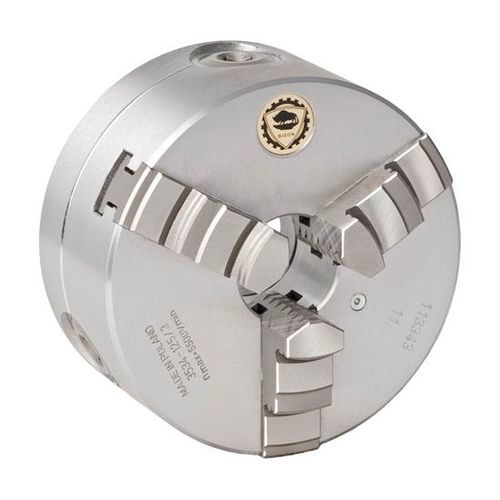

DIN workpiece clamping chuck - 3534-315-8 - Bison S.A. - for turning applications / standard / self-centering
DIN workpiece clamping chuck - 3534-315-8 - Bison S.A. - for turning applications / standard / self-centering
Add to favorites
Compare this product

Characteristics

Machine mount
DIN
Application
for turning applications
Other characteristics
self-centering, steel, standard
Number of jaws
3-jaw
Clamping range

315 mm
(12.4 in)

Description

Product overview
3-jaw self-centering scroll chuck for conventional and CNC lathes. Steel body with Type C mounting (DIN 55027). Through-hole design and standard accuracy class suitable for general turning operations.

More information
  • Sku USA: 7-828-1258
  • Internal SKU: 353534710300
  • Promo: No
  • Size (diameter): 315 mm
  • Product type / model: 3534-315-8
  • Number of jaws: 3
  • Type of jaws: Solid jaws / Hard solid jaws
  • Mounting: Type C mount (DIN 55027)
  • Measurement unit: Metric
  • Taper: 8
  • Body material: Steel
  • Accuracy class: Standard
  • Through-hole: Yes
  • Increased clamping force: No
  • Chucks with large through-hole: No


Technical specifications
  • Product: 3-jaw self-centering scroll chuck
  • Material: Steel
  • Mounting standard: Type C (DIN 55027)
  • Model / product type: 3534-315-8
  • Size (diameter): 315 mm
  • Number of jaws: 3
  • Type of jaws: Solid, hard solid jaws
  • Taper: 8
  • Measurement unit: Metric
  • Through-hole: Yes
  • Accuracy class: Standard
  • Increased clamping force: No
  • Chucks with large through-hole: No
  • Applications: General turning, medium-duty workholding on lathes
