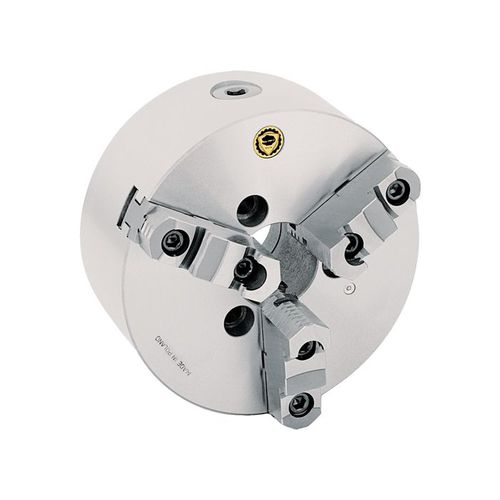

DIN workpiece clamping chuck 3245-250-6

for turning applicationsself-centering3-jaw

Product overview
3-jaw self-centering scroll chuck with cast iron body, engineered for lathe workholding. D mount (DIN 55029), taper 6. Nominal size: Ø250 mm (10"). Through-hole provided for bar work.

Details
Internal SKU: 353245630201. USA SKU: 7-803-1036.
Promo: No
Size: 250 mm (10")
Product type / model: 3245-250-6 (3245-10"-6)
Number of jaws: 3
Type of jaws: Hard 2-piece jaws
Mounting: Type D mount (DIN 55029)
Measurement unit: Metric / mm (inch value indicated)
Taper: 6
Body material: Cast iron
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No

Product attachments
Catalogue page (attached to product)
Technical data (attached to product)
Instruction manual (attached to product)

Technical specifications

• Type: 3-jaw self-centering scroll chuck
• Body material: Cast iron
• Mounting: Type D mount (DIN 55029)
• Size (diameter): Ø250 mm (10")
• Product type / model code: 3245-250-6 (3245-10"-6)
• Number of jaws: 3
• Jaws: Hard 2-piece jaws
• Measurement system: Metric (mm) with inch reference
• Taper: 6
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
