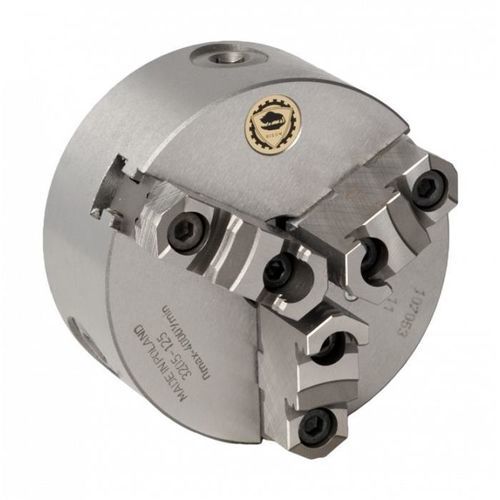

DIN workpiece clamping chuck 3205-630

for turning applicationsself-centering3-jaw

Product description
3-jaw self-centering scroll chuck model 3205-630, cast iron body, size 630 mm. Designed for general turning operations on lathes; plain back mount (DIN 6350) and through-hole allow bar feeding and efficient workpiece handling. Supplied with hardened 2-piece jaws for external clamping.

More information
Promo: No
Size: 630 mm
Product type: 3205-630
Number of jaws: 3
Type of jaws: 2-piece jaws / hardened 2-piece jaws
Mounting: Plain back mount (DIN 6350)
Measurement unit: metric
Body material: Cast iron
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No
SKU: 353205100300

Technical specifications

• Model / Product type: 3205-630
• Size: 630 mm
• Number of jaws: 3
• Type of jaws: 2-piece jaws (hardened 2-piece jaws)
• Mounting: Plain back mount (DIN 6350)
• Measurement unit: metric
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
• SKU: 353205100300
