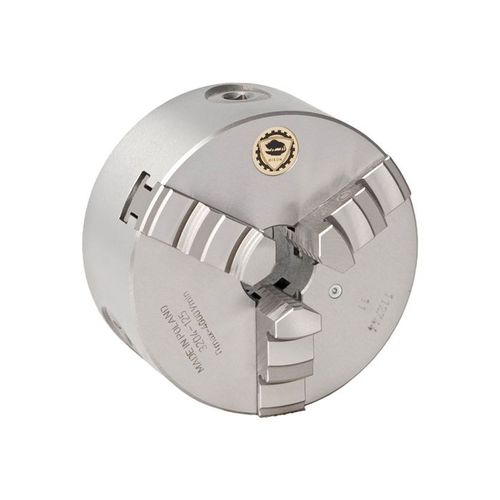

DIN workpiece clamping chuck 3204-125for turning applicationsrear clampingfor machine tools
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Application
- for turning applications
- Other characteristics
- self-centering, rear clamping, for machine tools
- Number of jaws
- 3-jaw
- Clamping range
125 mm
(4.92 in)
Description
Overview
3-jaw self-centering scroll chuck 3204-125 with cast-iron body, nominal diameter 125 mm, plain back mount according to DIN 6350. Through-hole design suitable for bar feeding and general turning operations.
Product details
Included jaws
Technical specifications
Applications
Designed for concentric clamping and turning on lathes. Suitable for bar feeding and medium-duty machining where a plain back mount (DIN 6350) is required.
Ordering information
3-jaw self-centering scroll chuck 3204-125 with cast-iron body, nominal diameter 125 mm, plain back mount according to DIN 6350. Through-hole design suitable for bar feeding and general turning operations.
Product details
- Configuration: 3-jaw self-centering scroll chuck
- Model: 3204-125
- Body material: Cast iron
- Size: 125 mm
- Mounting: Plain back mount (DIN 6350)
- Through-hole: Yes
- Measurement unit: Metric
- Number of jaws: 3
- Type of jaws: Solid jaws; Hard solid jaws
Included jaws
- Solid jaws
- Hard solid jaws
Technical specifications
- Product type: 3204-125
- SKU: 353204030000
- Accuracy class: Standard
- Promo: No
- Increased clamping force: No
- Chucks with large through-hole: No
Applications
Designed for concentric clamping and turning on lathes. Suitable for bar feeding and medium-duty machining where a plain back mount (DIN 6350) is required.
Ordering information
- Product reference: 3204-125
- SKU: 353204030000
