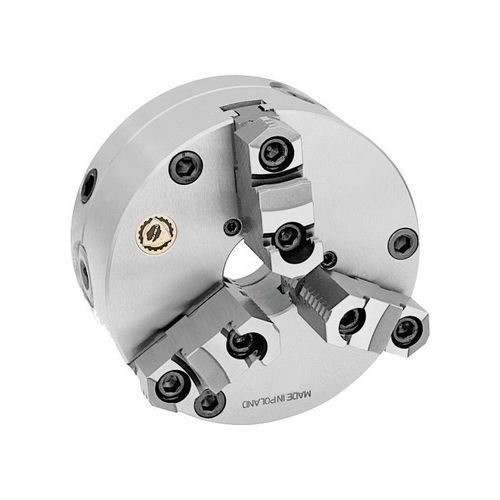

Workpiece clamping chuck for turning applications 3565-200

micrometricfront clampingprecision

Product overview
3-jaw self-centering scroll chuck with fine adjustment for precision turning. Front-mount design for 200 mm spindles. Steel body with 2-piece hardened jaws and a through-hole for bar feed.

Key details
Promo: No
Size: 200 mm
Product type / Model: 3565-200
Number of jaws: 3
Type of jaws: 2-piece, hardened
Mounting: Front mount
Measurement system: Metric
Body material: Steel
Accuracy class: Precision with fine adjustment
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No

Specifications / Technical specifications

• Model: 3565-200
• Product type: 3565-200
• Size (diameter): 200 mm
• Number of jaws: 3
• Type of jaws: 2-piece, hardened
• Mounting: Front mount
• Measurement system: Metric
• Body material: Steel
• Accuracy class: Precision (with fine adjustment)
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
• Short description: 3-jaw self-centering scroll chuck with fine adjustment
• SKU: 353565050400
