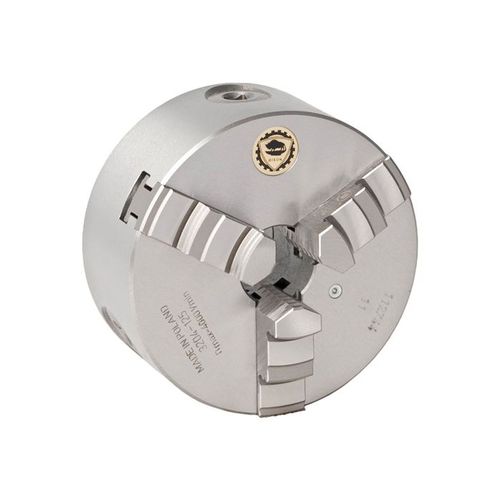

DIN workpiece clamping chuck 3204-80

for turning applicationsself-centering3-jaw

Overview
3-jaw self-centering scroll chuck for turning operations. Cast iron body with plain back mounting (DIN 6350). Size: 80 mm. Supplied with solid jaws and hardened solid jaws. Through-hole for bar feeding. Accuracy class: Standard.

Product details

• SKU: 353204010600
• Price (incl. VAT): €571.95
• Price (excl. VAT): €465.00
• Product type / Model: 3204-80
• Size: 80 mm
• Number of jaws: 3
• Type of jaws: Solid jaws; Hard solid jaws
• Mounting: Plain back mount (DIN 6350)
• Measurement unit: metric
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No

Key specifications

• Self-centering scroll mechanism for fast concentric clamping
• Suitable for bar feed through the chuck
• Standard accuracy class for general industrial turning
• Available with hardened jaw option for increased wear resistance

Applications

• General turning and concentric clamping of round workpieces
• Bar feeding for continuous machining operations
• Suitable for industrial lathes requiring medium precision

Mounting & compatibility

• Plain back mount to DIN 6350 — requires compatible spindle face plate or adapter
• Verify spindle bore diameter and adapter requirements prior to installation
• Check jaw fitment and replacement part numbers for retrofit applications

Ordering information

• Model: 3204-80
• SKU: 353204010600
• Contact supplier for spare jaws, adapters or mounting accessories
