DIN workpiece clamping chuck 4344-315-8 12"-8
for turning applicationsfor external turningmanual

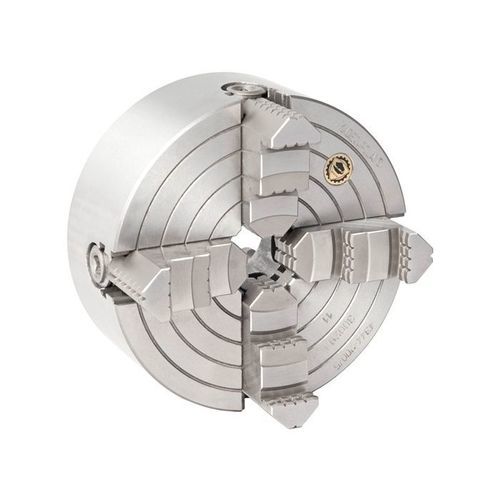

DIN workpiece clamping chuck - 4344-315-8 12"-8 - Bison S.A. - for turning applications / for external turning / manual
DIN workpiece clamping chuck - 4344-315-8 12"-8 - Bison S.A. - for turning applications / for external turning / manual
DIN workpiece clamping chuck - 4344-315-8 12"-8 - Bison S.A. - for turning applications / for external turning / manual - image - 2
Add to favorites
Compare this product
Go to the Bison S.A. website for more information

Characteristics

Machine mount
DIN
Application
for turning applications, for external turning
Other characteristics
workpiece, for CNC lathes, manual, for CNC machines
Number of jaws
4-jaw
Clamping range

315 mm
(12.4 in)

Description

Overview
Independent 4-jaw cast iron chuck with individually adjustable solid hardened jaws for independent clamping on lathes. Type D mounting (DIN 55029). Size: 315 mm (12"); taper 8; through-hole: yes; accuracy class: Standard.

Applications
  • Workholding on CNC and manual lathes
  • Turning of shafts, rings and asymmetrical parts
  • Independent jaw adjustment for irregular-shaped or off-center clamping


Attached documents
  • Catalogue page (file available)
  • Technical data (file available)
  • User manual (file available)


Technical specifications
  • SKU: 354344150501
  • Promo: No
  • Size: 315 mm (12")
  • Product type: 4344-315-8 12"-8
  • Number of jaws: 4
  • Type of jaws: Solid / Hard solid
  • Mounting: Type D (DIN 55029)
  • Measurement unit: mm / inch
  • Taper: 8
  • Body material: Cast iron
  • Accuracy class: Standard
  • Through-hole: Yes
  • Increased clamping force: No
  • Chucks with large through-hole: No
