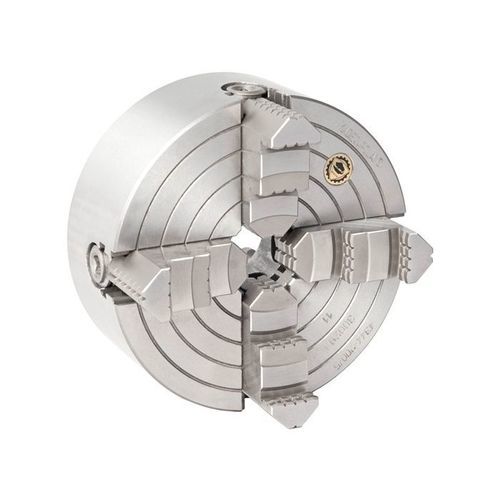

DIN workpiece clamping chuck 4344-250-6 10"-6

for turning applications4-jaw

Overview
Independent 4-jaw chuck for lathe turning operations. Cast iron body with individually adjustable hardened solid jaws. Type D mounting (DIN 55029). 250 mm (10") diameter, taper 6, through-hole present, standard accuracy class.

Product information
SKU: 354344120000
Size: 250 mm (10")
Product type: 4344-250-6
Number of jaws: 4
Type of jaws: Solid, hardened
Mounting: Type D (DIN 55029)
Measurement unit: metric (mm) — inches shown as reference
Taper: 6
Body material: Cast iron
Accuracy class: Standard
Through-hole: Yes
Increased clamping force option: No
Large through-hole variant: No

Available product attachments
Catalogue page (354.22 kB)
Technical data (527.12 kB)
Instruction manual (8.49 MB)

Features / Technical specifications

• Body material: cast iron
• 4 independently adjustable jaws
• Solid, hardened jaws
• Type D mounting according to DIN 55029
• Measurement unit: mm (inches shown as reference)
• Taper: 6
• Size (diameter): 250 mm (10")
• Accuracy class: standard
• Through-hole: yes
• No increased clamping force option
• Not a large through-hole chuck
• SKU: 354344120000
