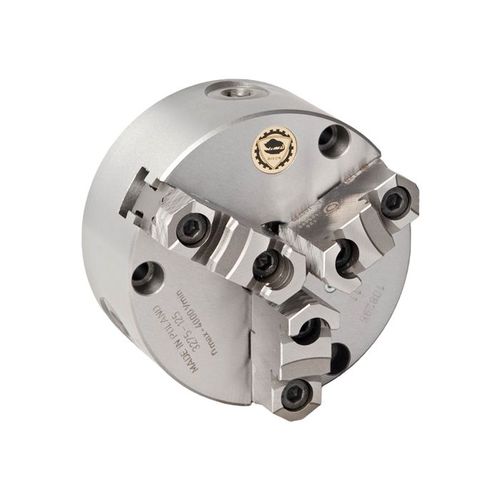

Workpiece clamping chuck for turning applications 3275-160

standardfront clampingself-centering

Overview
3-jaw self-centering scroll chuck for front mounting (DIN 6350). Cast iron body with plain-back frontal mounting. Equipped with hard 2-piece jaws and a through-hole. Size: 160 mm; accuracy class: Standard.

Key features

• Self-centering scroll mechanism with 3 jaws
• Model: 3275-160; Size: 160 mm
• Body material: Cast iron
• Jaws: Hard 2-piece jaws
• Mounting: Front mounting with plain back (DIN 6350)
• Through-hole: Yes
• Accuracy class: Standard
• Increased clamping force: No

Technical specifications

• SKU: 353275340300
• Alternate SKU: 353275780401
• SKU USA: 7-812-1600
• Product type: 3275-160
• Size: 160 mm
• Number of jaws: 3
• Type of jaws: Hard 2-piece
• Mounting: Front mounting with plain back (DIN 6350)
• Body material: Cast iron
• Measurement unit: metric
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No

Applications
Front-mounted lathes with plain back; general turning and machining operations requiring standard precision and reliable centring.

Documentation

• Catalogue page (749.56 kB)
• Technical data (830.88 kB)
• Instruction manual (8.49 MB)
