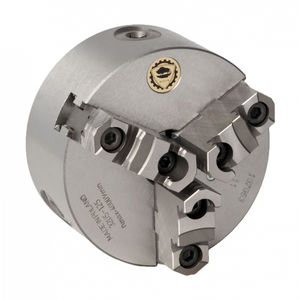

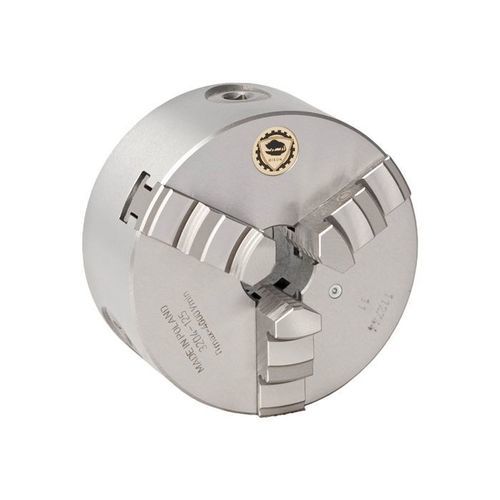

DIN workpiece clamping chuck 3204-315

for turning applicationsself-centering3-jaw

Overview
3-jaw self-centering scroll chuck model 3204-315 for general turning operations. Cast iron body (DIN 6350). Plain back mounting. Through-hole for bar feeding. Supplied with solid jaws and hard solid jaws. Accuracy class: Standard.

More information
Promo: No
Size: 315 mm
Product type: 3204-315
Number of jaws: 3
Type of jaws: Solid jaws; Hard solid jaws
Mounting: Plain back mount (DIN 6350)
Measurement unit: metric
Body material: Cast iron
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No

Technical specifications

• SKU: 353204070700
• Model / Product type: 3204-315
• Size (diameter): 315 mm
• Number of jaws: 3
• Jaws: Hard solid jaws (solid)
• Mounting: Plain back mount (DIN 6350)
• Body material: Cast iron
• Measurement unit: metric
• Through-hole: Yes
• Accuracy class: Standard
• Increased clamping force: No

Applications

• Turning of shafts, bushings and cylindrical components
• Bar-feeding operations using through-hole
• General workshop and production turning tasks
