DIN workpiece clamping chuck 4344-315-6 12"-6

for turning applicationsstandardadjustable

Product overview

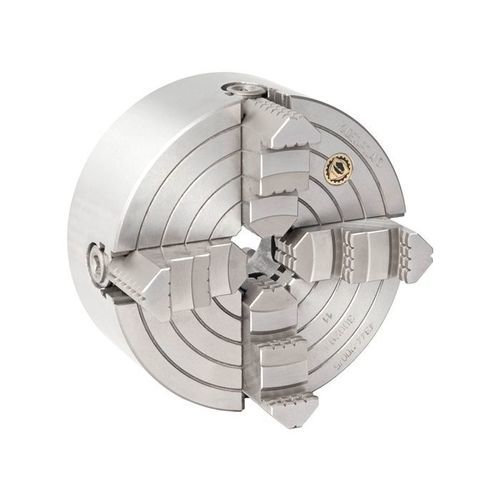

4-jaw cast iron chuck with individually adjustable jaws, D-mount (DIN 55029). Size 12" with taper 6 and through-hole for bar feeding. Supplied with hard solid jaws for secure clamping in standard accuracy class.

More information

• Model: 4344-12"-6
• Size: 12"
• Number of jaws: 4 (individually adjustable)
• Type of jaws: Solid jaws; Hard solid jaws
• Mounting: Type D mount (DIN 55029)
• Measurement unit: inch
• Taper: 6
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No

Technical specifications

• SKU: 354344140301
• SKU USA: 7-853-1236
• Product type / Model: 4344-12"-6
• Measurement unit: inch
