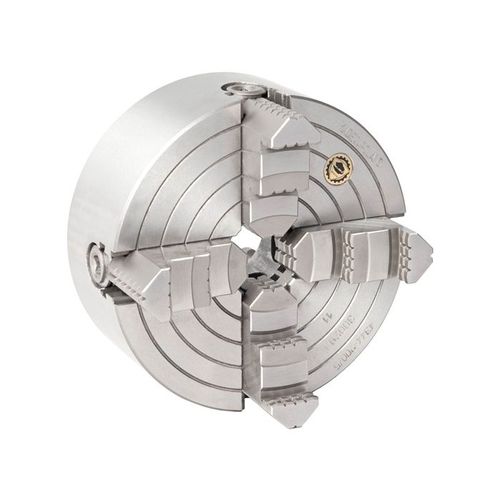

DIN workpiece clamping chuck 4344-16"-8

for turning applications4-jaw

Overview
4-jaw independent chuck for lathes and machining centers with individually adjustable solid jaws. Cast iron body, Type D mounting (DIN 55029), through-hole and hardened solid jaws. Size 16"; taper 8. Designed for independent clamping and a range of turning operations.

Key features

• Individually adjustable jaws (4-jaw independent)
• Cast iron body
• Solid jaws; hardened solid jaws
• Type D mount (DIN 55029)
• Through-hole: Yes
• Taper: 8
• Measurement unit: inch
• Accuracy class: Standard

Additional information (table)
Sku USA: 7-853-1638
Promo: No
Size: 16"
Product type: 4344-16"-8
Number of jaws: 4
Type of jaws: Solid jaws; Hard solid jaws
Mounting: Type D mount (DIN 55029)
Measurement unit: inch
Taper: 8
Body material: Cast iron
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No

Product attachments

• Catalog page (754.95 kB)
• Technical data (830.88 kB)
• Instruction Manual (8.49 MB)

Technical specifications

• SKU: 354344170901
• SKU USA: 7-853-1638
• Size: 16"
• Model / Product type: 4344-16"-8
• Number of jaws: 4
• Type of jaws: Solid jaws; Hard solid jaws
• Mounting: Type D mount (DIN 55029)
• Measurement unit: inch
• Taper: 8
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
