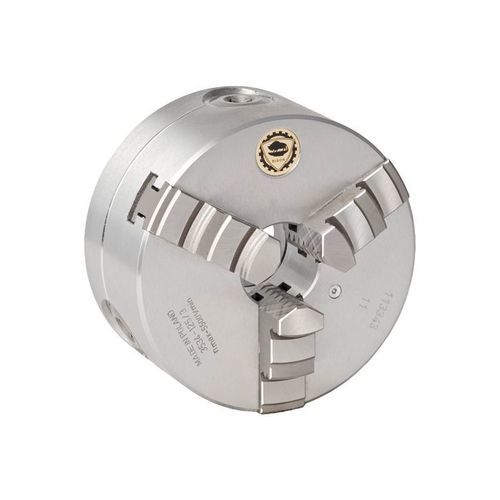

DIN workpiece clamping chuck 3534-160-5
for turning applicationsstandardself-centering

DIN workpiece clamping chuck - 3534-160-5 - Bison S.A. - for turning applications / standard / self-centering
DIN workpiece clamping chuck - 3534-160-5 - Bison S.A. - for turning applications / standard / self-centering
Add to favorites
Compare this product
Go to the Bison S.A. website for more information

Characteristics

Machine mount
DIN
Application
for turning applications
Other characteristics
self-centering, steel, standard
Number of jaws
3-jaw
Clamping range

160 mm
(6.3 in)

Description

Product description
3-jaw self-centering scroll chuck with steel body, Type C mounting (DIN 55027), solid hardened jaws, through-hole; taper 5.

More information
Sku USA: 7-828-0655
Promo: No
Size: 160
Product type: 3534-160-5
Number of jaws: 3
Type of jaws: Solid jaws; Hard solid jaws
Mounting: Type C mount (DIN 55027)
Measurement unit: metric
Taper: 5
Body material: Steel
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No

Technical specifications
  • SKU: 353534610200
  • SKU USA: 7-828-0655
  • Model / Product type: 3534-160-5
  • Size (diameter): 160
  • Number of jaws: 3
  • Type of jaws: Solid, hard solid jaws
  • Mounting: Type C mount (DIN 55027)
  • Measurement unit: metric
  • Taper: 5
  • Body material: Steel
  • Accuracy class: Standard
  • Through-hole: Yes
  • Increased clamping force: No
  • Chucks with large through-hole: No
