DIN workpiece clamping chuck 3245-200-5

for turning applicationsstandardself-centering

Overview

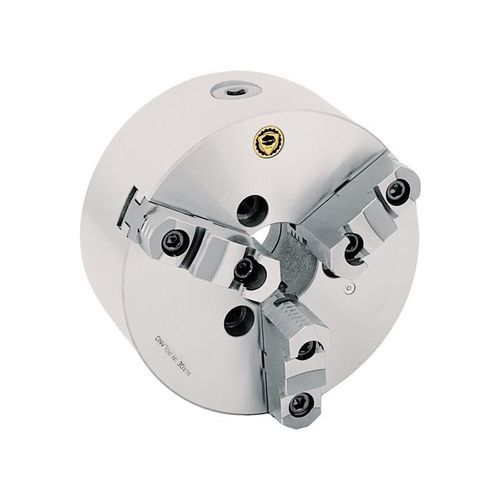

3-jaw self-centering scroll chuck 3245-200-5 with cast iron body. Size: 200 mm. Type D mount (DIN 55029). Equipped with hard 2-piece scroll jaws, taper 5 and through-hole. Measurement unit: metric. Accuracy class: Standard.

Key features

• Size: 200 mm
• Number of jaws: 3
• Jaws: 2-piece hard scroll jaws
• Mounting: Type D (DIN 55029)
• Taper: 5
• Body material: Cast iron
• Through-hole: Yes
• Measurement unit: metric
• Accuracy class: Standard
• Increased clamping force: No
• Chucks with large through-hole: No

Applications

• Turning cylindrical parts on lathes
• General workholding in machining shops
• Maintenance and repair of rotating assemblies

Technical specifications

• Model / Product type: 3245-200-5
• Size: 200 mm
• Number of jaws: 3
• Jaws: 2-piece; hard 2-piece scroll jaws
• Mounting: Type D (DIN 55029)
• Taper: 5
• Body material: Cast iron
• Measurement unit: metric
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Chucks with large through-hole: No
