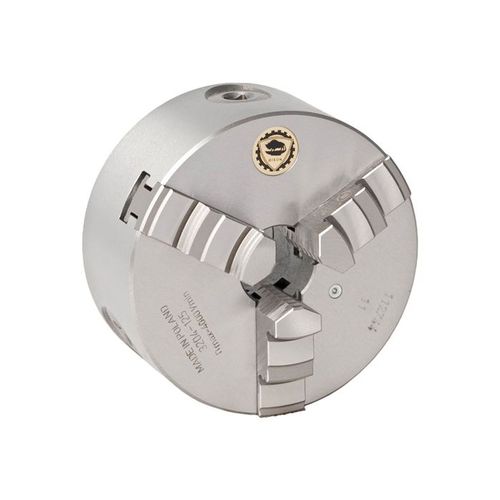

DIN workpiece clamping chuck 3204-500for turning applicationsstandardself-centering
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Application
- for turning applications
- Other characteristics
- self-centering, standard
- Number of jaws
- 3-jaw
- Clamping range
500 mm
(19.69 in)
Description
Product overview
3-jaw self-centering scroll chuck for lathes, model 3204-500. Cast iron body designed for plain back mount (DIN 6350). 500 mm diameter with through-hole for bar work; standard accuracy class suitable for general turning operations.
More information
Attachments
Characteristics / technical specifications
3-jaw self-centering scroll chuck for lathes, model 3204-500. Cast iron body designed for plain back mount (DIN 6350). 500 mm diameter with through-hole for bar work; standard accuracy class suitable for general turning operations.
More information
- Promo: No
- Size: 500 mm
- Product type: 3204-500
- Number of jaws: 3
- Type of jaws: Solid jaws; Hard solid jaws
- Mounting: Plain back mount (DIN 6350)
- Measurement unit: Metric
- Body material: Cast iron
- Accuracy class: Standard
- Through-hole: Yes
- Increased clamping force: No
- Chucks with large through-hole: No
- SKU: 353204530401
- SKU USA: 7-810-0500
Attachments
- Catalog page
- Technical data
- Instruction manual
Characteristics / technical specifications
- SKU: 353204530401
- SKU USA: 7-810-0500
- Model / product type: 3204-500
- Size (diameter): 500 mm
- Number of jaws: 3
- Type of jaws: Hard solid jaws
- Mounting: Plain back mount (DIN 6350)
- Body material: Cast iron
- Measurement unit: Metric
- Accuracy class: Standard
- Through-hole: Yes
- Increased clamping force: No
- Chucks with large through-hole: No
