DIN workpiece clamping chuck 3544-630-8-Ifor turning applicationsstandardself-centering
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Application
- for turning applications
- Other characteristics
- self-centering, steel, standard
- Number of jaws
- 3-jaw
- Clamping range
630 mm
(24.8 in)
Description
Description

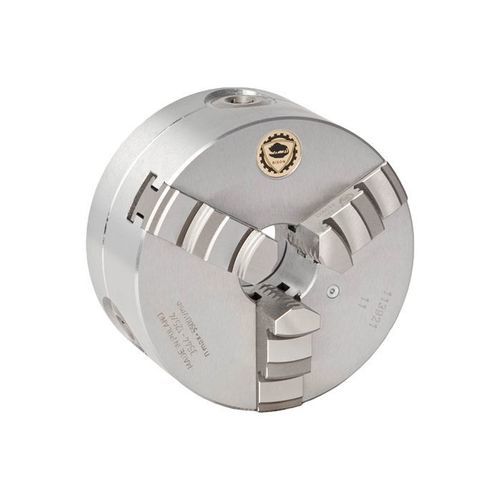

3-jaw self-centering scroll chuck for lathes, steel body, Type D mounting (DIN 55029). Suitable for turning and clamping round and prismatic workpieces. Supplied with solid and hard solid jaws; through-hole available. Size: 630, taper: 8.
Product details
Sku USA: 7-824-2538
SKU (internal): 353544520000
Size: 630
Product type: 3544-630-8
Number of jaws: 3
Type of jaws: Solid jaws; Hard solid jaws
Mounting: Type D mount (DIN 55029)
Measurement unit: metric
Taper: 8
Body material: Steel
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No
Caractéristiques / spécifications techniques
3-jaw self-centering scroll chuck for lathes, steel body, Type D mounting (DIN 55029). Suitable for turning and clamping round and prismatic workpieces. Supplied with solid and hard solid jaws; through-hole available. Size: 630, taper: 8.
Product details
Sku USA: 7-824-2538
SKU (internal): 353544520000
Size: 630
Product type: 3544-630-8
Number of jaws: 3
Type of jaws: Solid jaws; Hard solid jaws
Mounting: Type D mount (DIN 55029)
Measurement unit: metric
Taper: 8
Body material: Steel
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No
Caractéristiques / spécifications techniques
- Type: 3-jaw self-centering scroll chuck
- Material: Steel body
- Mounting: Type D mount (DIN 55029)
- Size: 630
- Product type / Model reference: 3544-630-8
- Number of jaws: 3
- Type of jaws: Solid jaws / Hard solid jaws
- Taper: 8
- Measurement unit: Metric
- Accuracy class: Standard
- Through-hole: Yes
- Increased clamping force: No
- Chucks with large through-hole: No
- Typical applications: Lathe turning, workholding for cylindrical parts
