DIN workpiece clamping chuck 3204-200

for turning applicationsstandardself-centering

Overview

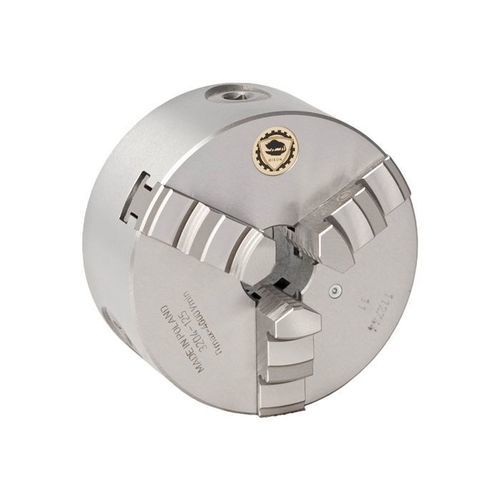

3-jaw self-centering scroll chuck for lathe mounting. Cast iron body, plain back mount in accordance with DIN 6350, nominal size 200 mm. Solid hardened jaws and a through-hole for bar feeding provide a simple, reliable clamping solution for general turning operations.

Product summary

• SKU: 353204590501
• Model: 3204-200
• Size: 200 mm
• Number of jaws: 3
• Type of jaws: Solid jaws; Hardened solid jaws
• Mounting: Plain back mount (DIN 6350)
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Large through-hole variant: No
• Measurement unit: metric

Applications
Suitable for general turning and machining of medium to large workpieces on conventional and CNC lathes. Commonly used in machining workshops for repetitive production and shop-floor work where standard accuracy and cost-effective clamping are required.

Product attachments

• Catalogue page (741.23 kB)
• Technical data (830.88 kB)
• User manual (8.49 MB)

Specifications

• SKU: 353204590501
• SKU USA: 7-810-2000
• Promo: No
• Size: 200 mm
• Product type / Model: 3204-200
• Number of jaws: 3
• Type of jaws: Solid jaws; Hardened solid jaws
• Mounting: Plain back mount (DIN 6350)
• Unit of measure: metric
• Body material: Cast iron
• Accuracy class: Standard
• Through-hole: Yes
• Increased clamping force: No
• Large through-hole variant: No
