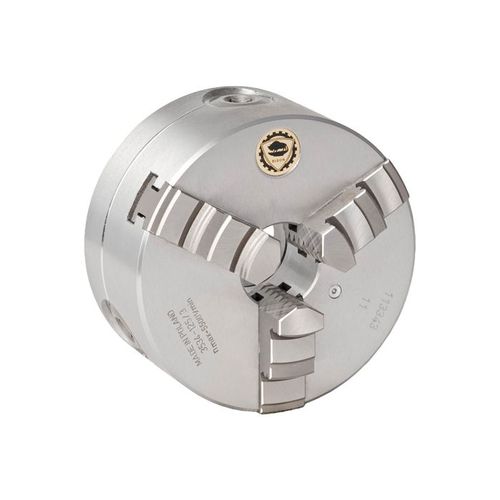

DIN workpiece clamping chuck 3534-315-11for turning applicationsstandardself-centering
Add to favorites
Compare this product
Characteristics
- Machine mount
- DIN
- Application
- for turning applications
- Other characteristics
- self-centering, steel, standard
- Number of jaws
- 3-jaw
- Clamping range
315 mm
(12.4 in)
Description
Overview
3-jaw self-centering scroll chuck for lathe turning operations. Steel body, Type C mounting (DIN 55027), size 315, taper 11, with through-hole.
Product details
SKU: 353534720500
SKU USA: 7-828-1259
Promo: No
Size: 315
Product type: 3534-315-11
Number of jaws: 3
Type of jaws: Solid jaws; Hard solid jaws
Mounting: Type C mount (DIN 55027)
Measurement unit: metric
Taper: 11
Body material: Steel
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No
Technical specifications
Applications
3-jaw self-centering scroll chuck for lathe turning operations. Steel body, Type C mounting (DIN 55027), size 315, taper 11, with through-hole.
Product details
SKU: 353534720500
SKU USA: 7-828-1259
Promo: No
Size: 315
Product type: 3534-315-11
Number of jaws: 3
Type of jaws: Solid jaws; Hard solid jaws
Mounting: Type C mount (DIN 55027)
Measurement unit: metric
Taper: 11
Body material: Steel
Accuracy class: Standard
Through-hole: Yes
Increased clamping force: No
Chucks with large through-hole: No
Technical specifications
- Self-centering 3-jaw scroll mechanism
- Material: steel body
- Mounting: Type C (DIN 55027)
- Size: 315
- Taper: 11
- Number of jaws: 3 (solid, hard solid jaws)
- Measurement unit: metric
- Accuracy class: Standard
- Through-hole: Yes
- Increased clamping force: No
Applications
- General turning and gripping of round workpieces
- Use on engine lathes and CNC lathes with Type C mounting
- Suitable for workshops and production lines requiring standard accuracy
